Henry Fournier 1933
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| O`Byrne | SC5 | Schneider, Chalon-sur-Saône | 4/1917 | 22.5.1919 | 1921 | discarded 7.1935 | |
| Henry Fournier | SC6 | Schneider, Chalon-sur-Saône | 4/1917 | 30.9.1919 | 1921 | discarded 7.1935 | |
| Louis Dupetit-Thouars | SC7 | Schneider, Chalon-sur-Saône | 4/1917 | 5-6/1920 | 1921 | discarded 11.1928 |
|
Displacement standard, t |
|
|
Displacement normal, t |
342 / 513 |
|
Length, m |
52.4 |
|
Breadth, m |
4.70 |
|
Draught, m |
2.70 |
|
No of shafts |
2 |
|
Machinery |
2 Schneider-Carels diesels / 2 electric motors |
|
Power, h. p. |
1020 / 400 |
|
Max speed, kts |
14 / 8 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 1850(10) / 55(5) |
|
Armament |
1 x 1 - 47/50 M1902, 4 - 450 TT (bow, 4) |
| Complement | 25 |
| Diving depth operational, m |
Project history: Requisitioned while building ex-Rumanian submarines. Double-hulled, Laubeuf type.
Modernizations: None.
Naval service: No significant events.

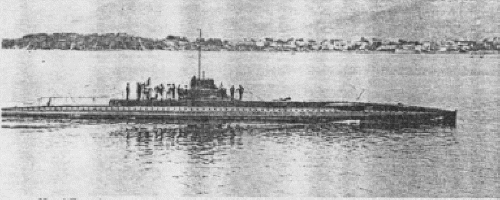

Henry Fournier 1921
Many thanks to Wolfgang Stöhr for additional information on this page.
