Maurice Callot 1933
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Maurice Callot | NN1 | F C de la Gironde, Bordeaux | 5.1917 | 26.3.1921 | 1922 | discarded 1936 |
|
Displacement standard, t |
|
|
Displacement normal, t |
931 / 1298 |
|
Length, m |
75.5 |
|
Breadth, m |
6.70 |
|
Draught, m |
3.50 |
|
No of shafts |
2 |
|
Machinery |
2 Schneider diesels / 2 electric motors |
|
Power, h. p. |
2900 / 1640 |
|
Max speed, kts |
16.5 / 10.5 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 2800(11) / 118(5) |
|
Armament |
1 x 1 - 75/35 M1897, 6 - 450 TT (4 bow, 2 stern, 8), 27 mines |
| Complement | 48 |
| Diving depth operational, m |
Project history: Double-hulled submarine of Schneider-Laubeuf type. Mines were stored in the superstructure and were laid by Laubeuf system.
Modernizations: None.
Naval service: No significant events.

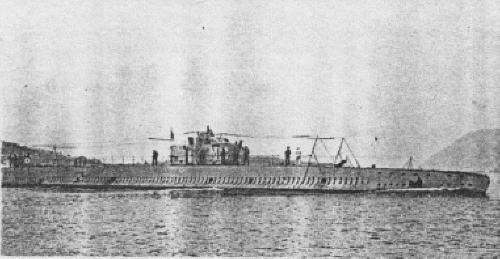

Maurice Callot 1921
Many thanks to Wolfgang Stöhr for additional information on this page.
