GUSTAVE ZÉDÉ submarines (1914-1916)

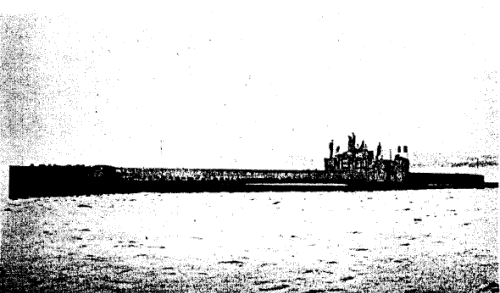

Gustave Zédé 1922

Name No Yard No Builder Laid down Launched Comp Fate
Gustave Zédé Q092 Q34 Arsenal de Cherbourg 2.1911 20.5.1913 10.1914 stricken 1937
Néréïde Q093 Q35 Arsenal de Cherbourg 7.1911 9.5.1914 1.1916 stricken 1935



Displacement standard, t



Displacement normal, t

Gustave Zédé: 849 /1098

Néréide: 820 / 1047

Length, m

74.0

Breadth, m

6.00

Draught, m

3.70

No of shafts

2

Machinery

Gustave Zédé: 2 VTE, 2 Du Temple boilers / 2 electric motors

Néréide: 2 Schneider-Carels diesels / 2 electric motors

Power, h. p.

Gustave Zédé: 3500 / 1640

Néréide: 2400 / 1640

Max speed, kts

Gustave Zédé: 17.6 / 11.4

Néréide: 17.3 / 10.5

Fuel, t

Gustave Zédé: oil

Néréide: diesel oil

Endurance, nm(kts)

Gustave Zédé: 1400(10) / 135(5)

Néréide: 3120(10) / 90(4)

Armament

8 - 450 TT (2 bow, 4 inboard, 2 ext cradles, 10), 1 x 1 - 75/34 M1897, 1 x 1 - 47/50 M1902

Complement 47
Diving depth operational, m 50

Project history: Projected by M. Simonot as diesel-electric submarines, but in 1912 the decision was accepted to complete lead boat with steam surface machinery. Machinery of both boats have appeared unsuccessful: on Gustave Zédé it was too bulky and inconvenient in operation, and on Néréide diesels reached only half of designed power. In 1921-1922 Gustave Zédé received diesels from requisitioned German submarine U165.

Modernizations: 1922, Gustave Zédé: VTE were replaced by 2 MAN Q6 diesels (2400 hp, 15 kts), fuel capacity was increased.

1922, Néréide: + 1 x 2 - 450 TT; new bridge and periscope were fitted.

Naval service: No significant events.

Néréide
