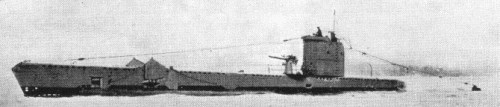

Doris 1944
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Doris (ex-Vineyard) | T2 | 888 | Vickers-Armstrong, Barrow, UK | 1943 | 8.5.1944 | 8.1944 | to United Kingdom 1947 (Vineyard) |
| Morse (ex-Vortex) | T3 | 891 | Vickers-Armstrong, Barrow, UK | 1943 | 19.8.1944 | 11.1944 | to Denmark 1947 (Sælen) |
|
Displacement standard, t |
545 |
|
Displacement normal, t |
658 - 662 / 740 |
|
Length, m |
62.3 |
|
Breadth, m |
4.90 |
|
Draught, m |
4.65 |
|
No of shafts |
2 |
|
Machinery |
2 Paxman diesel-generators, 2 electric motors |
|
Power, h. p. |
615 / 825 |
|
Max speed, kts |
11.25 / 10 |
|
Fuel, t |
diesel oil 55 |
| Endurance, nm(kts) | 4700(10) / 30(9) |
|
Armament |
1 x 1 - 76/45 20cwt QF Mk I/II/III, 2 x 1 - 20/70 Oerlikon Mk II/IV, 4 - 533 TT (bow, 8 torpedoes or 6 �2 mines) |
|
Electronic equipment |
type 267QW radar, type 129, type 138 sonars |
|
Complement |
33 |
|
Diving depth operational, m |
90 |
Project history: Ex-British submarines of U class (long hull) transferred to France in day of completing, returned after war.
Modernizations: None.
Naval service: No significant events.
Voracious 1944
