FRENCH NAVY (FRANCE)

SUBMARINES

DIANE submarines (1932-1934)

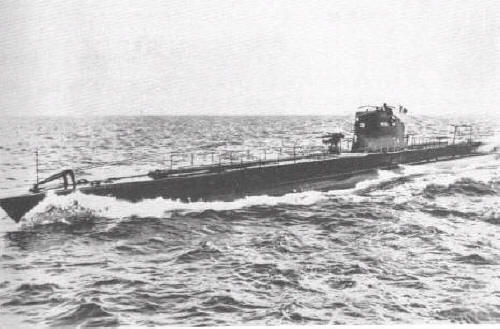

Oréade 1932

Name No Yard No Builder Laid down Launched Comp Fate
Diane NN4   A C Augustin-Normand, Le Havre 4.1927 13.5.1930 9.1932 scuttled 9.11.1942
Méduse NN5   A C Augustin-Normand, Le Havre 4.1927 26.8.1930 9.1932 beached 10.11.1942
Antiope Q160 55 A C de la Seine-Maritime, Le Trait 3.1928 19.8.1930 10.1932 FNFL 12.1942, sold 4.1946
Amphitrite Q159   A C Augustin-Normand, Le Havre 1.1928 20.12.1930 6.1933 sunk 8.11.1942
Amazone Q161 56 A C de la Seine-Maritime, Le Trait 11.1928 28.12.1931 10.1933 FNFL 12.1942, sold 4.1946
Orphée Q163   A C Augustin-Normand, Le Havre 11.1928 10.11.1931 6.1933 FNFL 12.1942, sold 4.1946
Oréade Q164 58 A C de la Seine-Maritime, Le Trait 11.1928 23.5.1932 12.1933 sunk 8.11.1942
La Sibylle Q175 62 A C de la Seine-Maritime, Le Trait 1.1930 28.1.1932 12.1934 sunk 11.11.1942
La Psyché Q174   A C Augustin-Normand, Le Havre 1.1930 4.8.1932 12.1933 sunk 8.11.1942



Displacement standard, t



Displacement normal, t

651 / 807

Length, m

64.4

Breadth, m

6.20

Draught, m

4.30

No of shafts

2

Machinery

2 Normand-Vickers diesels / 2 electric motors

Power, h. p.

1400 / 1000

Max speed, kts

14 / 9

Fuel, t

diesel oil 39

Endurance, nm(kts) 4000(10) / 82(5)

Armament

1 x 1 - 75/35 M1928, 1 x 1 - 8.80, 6 - 550 TT (3 bow, 1 ext aft, 1 x 2 ext, 7), 2 - 400 TT (1 x 2 ext, 2)

Electronic equipment hydrophone
Complement 41
Diving depth operational, m 80

Project history: Built under 1926 (2 submarines), 1927 (3), 1928 (2 boats) and 1929 (2 boats) programmes. Normand-Fenaux variant of "630ton" submarine.

Modernizations: m. b. 1943 - 1944, all survived: - 1 x 1 - 8.80; + 1 x 1 - 20/70 Oerlikon Mk II/IV

Naval service: Six boats of this class were lost during Allied landing in the North Africa in November, 1942. Diane was destroyed by crew at Oran 9.11.1942 before occupancy of base by Allies. Méduse was damaged by aircraft and ran aground 10.11.1942 off Mazagon (Morocco). Amphitrite, Oréade and La Psyché were sunk by gunfire of Allied ships and carrier aircraft at Casablanca (Morocco) 8.11.1942. La Sybille was lost off Casablanca 11.11.1942. French consider her as lost on a mine, but loss of submarine from torpedoes of German submarine U173 is more probable.

Antiope, Amazone and Orphée in 1944 were laid up into reserve.

Oréade

Many thanks to Wolfgang Stöhr for additional information on this page.
