Charles Brun 1913
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Charles Brun | Q089 | Arsenal de Toulon | 1907 | 14.9.1910 | 10/1913 | condemned 6.1920 |
|
Displacement standard, t |
|
|
Displacement normal, t |
356 / 450 |
|
Length, m |
44.0 |
|
Breadth, m |
4.00 |
|
Draught, m |
3.30 |
|
No of shafts |
2 |
|
Machinery |
2 VTE, 4 du Temple boilers |
|
Power, h. p. |
1300 |
|
Max speed, kts |
13.5 / 7.2 |
|
Fuel, t |
oil |
| Endurance, nm(kts) | |
|
Armament |
2 - 450 TT (bow), 4 - 450 TC (2 Drzewiecki drop-collars abeam, 2 ext cradles aft) |
| Complement | 24 |
| Diving depth operational, m | 40 |
Project history: Experimental boat ordered on 31 December 1906 which never officially entered service. Trials of her experimental propulsion system were conducted between October 1910 and October 1913.
Modernizations: None.
Naval service: No significant events.

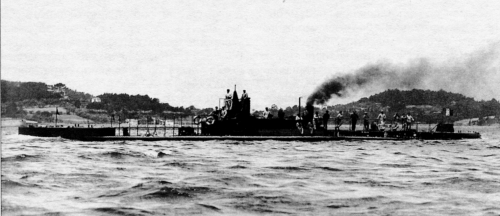

Charles Brun 1911
Many thanks to Wolfgang Stöhr for additional information on this page.
