Amiral Bourgois 1914
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Amiral Bourgois | Q082 | Arsenal de Rochefort | 5/1908 | 25.11.1912 | 8/1914 | stricken 11.1919 |
|
Displacement standard, t |
|
|
Displacement normal, t |
556 / 735 |
|
Length, m |
56.2 |
|
Breadth, m |
5.50 |
|
Draught, m |
3.60 |
|
No of shafts |
2 |
|
Machinery |
2 Schneider diesels / 2 electric motors |
|
Power, h. p. |
1400 / 1000 |
|
Max speed, kts |
13.9 / 8.7 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 2500(10) / 100(5) |
|
Armament |
4 - 450 TT (2 bow, 2 aft) |
| Complement | 25 |
| Diving depth operational, m | 40 |
Project history: Authorised under the 1906 programme. Twin-hulled submersible designed by M Bourdelle.
Modernizations: None.
Naval service: No significant events.

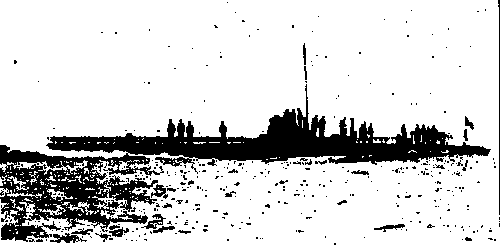

Amiral Bourgois
