Doudart de la Grée 1909
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Doudart de la Grée | A C de Bretagne, Nantes | 3.1908 | 5.1.1909 | 2.1909 | laid up 1939, BU 1941 |
|
Displacement normal, t |
183 |
|
Displacement full, t |
|
|
Length, m |
52.3 pp 54.4 oa |
|
Breadth, m |
6.70 |
|
Draught, m |
1.00 |
|
No of shafts |
2 |
|
Machinery |
2 VTE, 2 Fouché boilers |
|
Power, h. p. |
900 |
|
Max speed, kts |
14 |
|
Fuel, t |
coal 45 |
| Endurance, nm(kts) | |
|
Armament |
6 x 1 - 37/20 M1885 |
|
Complement |
66 |
Project history: Designed for service on Yangtze, ordered in 1908.
Modernizations: 1917: - 4 x 1 - 37/20; + 1 x 1 - 75/35 M1897, 4 x 1 - 8.80.
Naval service: Doudart de la Grée was laid up at Shanghai in 1939 and scrapped in 1941.

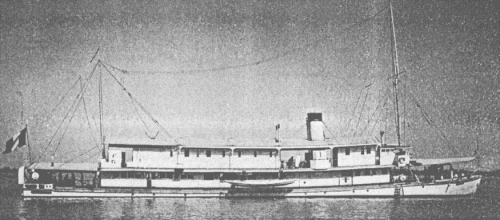

Doudart de la Grée 1937
