Cantho 1975
Alençon 1975
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Narvik | M609 | Peterson Builders, Sturgeon Bay, USA | 9.1954 | 23.4.1955 | 7.1956 | trials ship 1976 | |
| Ouistreham | M610 | Peterson Builders, Sturgeon Bay, USA | 10.1954 | 30.7.1955 | 9.1956 | stricken 1994 | |
| Alençon | M612 | Bellingham SY, USA | 11.1952 | 11.4.1953 | 7.1954 | stricken 1993 | |
| Berneval | M613 | Bellingham SY, USA | 1.1952 | 15.10.1952 | 1.1954 | stricken 1987 | |
| Bir Hacheim | M614 | Bellingham SY, USA | 3.1952 | 10.1.1953 | 3.1954 | to USA 9.1970 | |
| Cantho | M615 | Bellingham SY, USA | 4.1953 | 26.9.1953 | 2.1955 | auxiliary 1976 | |
| Dompaire | M616 | Bellingham SY, USA | 1.1953 | 11.4.1953 | 7.1954 | stricken 1987 | |
| Garigliano | M617 | Bellingham SY, USA | 8.1952 | 20.8.1953 | 5.1954 | stricken 1988 | |
| Mytho | M618 | Bellingham SY, USA | 3.1953 | 25.9.1953 | 10.1954 | tender 1965 | |
| Vinh Long | M619 | Bellingham SY, USA | 6.1953 | 5.2.1954 | 4.1955 | stricken 1988 | |
| Berlaimont | M620 | Bellingham SY, USA | 6.1954 | 7.1.1955 | 1.1956 | stricken 1989 | |
| Origny | M621 | Bellingham SY, USA | 8.1954 | 25.2.1955 | 2.1956 | survey vessel 1962 | |
| Autun | M622 | Bellingham SY, USA | 10.1954 | 6.5.1955 | 4.1956 | stricken 1978 | |
| Baccarat | M623 | Tacoma BB, USA | 6.1954 | 6.8.1955 | 4.1956 | stricken 1993 | |
| Colmar | M624 | Peterson Builders, Sturgeon Bay, USA | 4.1955 | 30.7.1955 | 11.1956 | stricken 1978 |
|
Displacement standard, t |
637 |
|
Displacement full, t |
735 |
|
Length, m |
50.3 wl 52.3 oa |
|
Breadth, m |
10.4 |
|
Draught, m |
4.00 |
|
No of shafts |
2 |
|
Machinery |
2 General Motors diesels |
|
Power, h. p. |
1520 |
|
Max speed, kts |
13 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
2400(12) |
|
Armament |
1 x 1 - 40/60 Mk 3, 2 x 1 - 12.7/90, A Mk 2, A Mk 4, A Mk 6 acoustic, M Mk 5, M Mk 6, M Mk 7 magnetic and Oropesa No.1 wire minesweeping gear |
|
Electronic equipment |
SPS-53 radar, UQS-1 sonar |
|
Complement |
70 |
Project history: In 1952 the USA agreed to transfer fifteen new ocean minesweeperû of the Agile class to the Marine Nationale under MDAP. They had wooden hulls and diesels of non-magnetic stainless steel alloy. Autun, Baccarat, Berlaimont, Colmar, Narvik, Origny and Ouistreham had taller funnels than the other ships.
Modernizations: 1976, Cantho; 1977, Dompaire; 1978, Mytho, Vinh Long; 1979, Garigliano, as minehunters: new block bridge structure; - minesweeping gear; + PAP-104 minehunting vehicle
1978-1982, Ouistreham, Alençon, Berneval, Berlaimont, Baccarat, as minehunters: + DUBM-41 sonar
Naval service: No significant events.

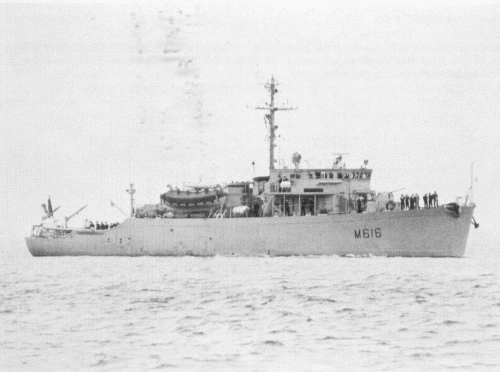

Dompaire 1980
