Granit 1918
Granit 1940
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Granit | A C de la Loire, Nantes | 1918 | 1918 | scuttled 27.11.1942 | |||
| Gres | A C de la Loire, St-Nazaire | 1918 | 1918 | condemned 1920 | |||
| Marbre | A C de la Loire, Nantes | 1918 | 1918 | condemned 1920 | |||
| Mica | A C de la Loire, St-Nazaire | 1918 | 1918 | condemned 1938 | |||
| Porphyre | A C de la Loire, Nantes | 1918 | 1918 | condemned 1932 |
|
Displacement normal, t |
360 |
|
Displacement full, t |
|
|
Length, m |
57.6 |
|
Breadth, m |
7.90 |
|
Draught, m |
2.30 |
|
No of shafts |
1 |
|
Machinery |
1 VTE, 1 Belleville boiler |
|
Power, h. p. |
600 |
|
Max speed, kts |
12.5 |
|
Fuel, t |
coal |
| Endurance, nm(kts) | |
|
Armament |
(1 - 2) x 1 - 65/50 M1902, mechanical minesweeping gear |
|
Complement |
63 |
Project history: Purpose-built minesweepers, laid down under 1917 program, officially rated as 2nd class avisos.
Modernizations: None.
Naval service: Granit was scuttled 27.11.1942 at Toulon, later salvaged and commissioned by Germans as SG26.

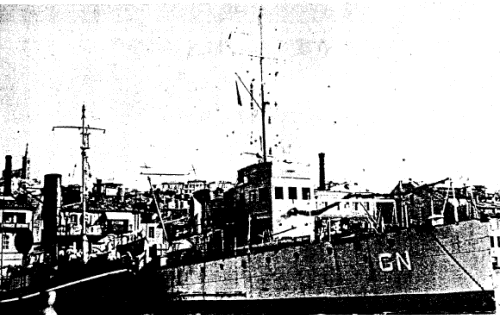

Granit
