Vulcain 1990
|
Name |
No |
Yard No |
Builder |
Laid down |
Launched |
Comp |
Fate |
| Antarès | M770 | SOCARENAM, Boulogne | 10.1992 | 30.8.1993 | 15.12.1993 | in service (2019) | |
| Altaïr | M771 | SOCARENAM, Boulogne | 7.6.1993 | 15.11.1993 | 30.7.1994 | in service (2019) | |
| Aldébaran | M772 | SOCARENAM, Boulogne | 15.11.1993 | 11.2.1994 | 15.3.1995 | in service (2019) |
|
Displacement standard, t |
295 |
|
Displacement full, t |
340 |
|
Length, m |
24.5 pp 28.3 oa |
|
Breadth, m |
7.70 |
|
Draught, m |
3.80 |
|
No of shafts |
1 |
|
Machinery |
1 Baudouin 12P15-2SR diesel |
|
Power, h. p. |
800 |
|
Max speed, kts |
11 |
|
Fuel, t |
diesel oil 41 |
| Endurance, nm(kts) | 3500(10) |
|
Armament |
1 x 1 - 12.7/90, OD3 mechanical minesweeping gear (fitted for) |
|
Electronic equipment |
DRBN-34A radar, DUBM-41B sonar |
|
Complement |
25 |
Project history: These three ships were built to replace the elderly ocean minesweepers of the Agile class for navigation training, and for route surveillance in the approaches to Brest. The design is based on a trawler hull. The DUBM-41B towed sonars were removed from the MSOs. A mechanical sweep can also be fitted.
Modernizations: 2007, Altaïr; 2008, Antarès; 2009, Aldébaran: - DUBM-41B sonar; + DUBM-44 sonar
Naval service: No significant events.

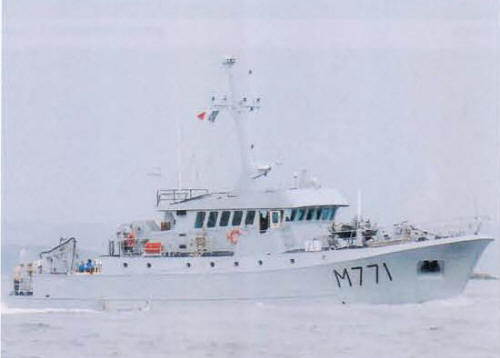

Altaïr 2008
