FRENCH NAVY (FRANCE)

Displacement standard, t	200
Displacement full, t	300
Length, m	30.0
Breadth, m	12.8
Draught, m	0.60 light 2.50 loaded
No of shafts	4 waterjets
Machinery	4 MTU 12V2000M93 diesels
Power, h. p.	6800
Max speed, kts	25 light 18 loaded
Fuel, t	diesel oil
Endurance, nm(kts)	1000(15)
Armament	2 x 1 - 12.7/90, 2 x 1 - 7.6/90
Electronic equipment	radar
Capacity	100t cargo or 2 tanks
Complement	4

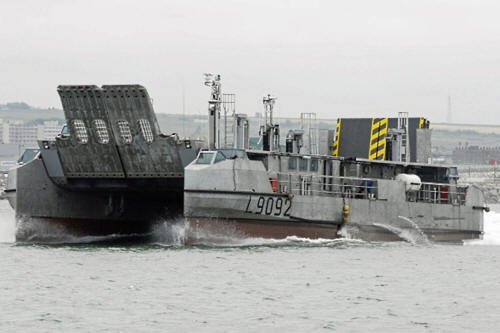

Project history: EDA-R = Engins de Débarquement Amphibie Rapides. Catamaran roll-on / roll-off landing craft for use with the Mistral class. Aluminum construction; able to transport up to 100 tons, including two main battle tanks or 26 troops. Fitted with bow and stern ramps for offloading cargo and an adjustable pontoon deck that can be raised for transit or lowered for beaching.
