similar L9070 1990
| Name | No | Yard No | Builder | Laid down | Launched | Comp. | Fate |
| 1997- Sabre | L9051 | SFCN, Villeneuve-la-Garenne | 3.3.1987 | 13.6.1987 | to Senegal 3.2011 (Gorée) | ||
| 1997- Dague | L9052 | SFCN, Villeneuve-la-Garenne | 10.9.1987 | 19.12.1987 | to Djibouti 6.2012 |
|
Displacement standard, t |
282 light |
|
Displacement full, t |
726 |
|
Length, m |
55.9 pp 59.4 oa |
|
Breadth, m |
11.9 |
|
Draught, m |
1.40 hull 1.70 max |
|
No of shafts |
2 |
|
Machinery |
2 SACM UD30V12 MB diesels |
|
Power, h. p. |
1400 |
|
Max speed, kts |
12 |
|
Fuel, t |
diesel oil 20 |
| Endurance, nm(kts) | 1000(10) |
|
Armament |
1 x 1 - 20/90 MIT-20F2, 2 x 1 - 12.7/90 |
| Electronic equipment | DRBN-32 radar |
| Capacity |
340 t of cargo |
|
Complement |
17 |
Project history: Designed to operate from the TCDs of the Foudre class, the EDIC 700 (Engins de Débarquement Infanterie Chars, 700t) was essentially an improved EDIC. The wheel-house can be lowered to facilitate docking. Further projected orders have been postponed because of delays in the TCD programme
Modernizations: None.
Naval service: No significant events.

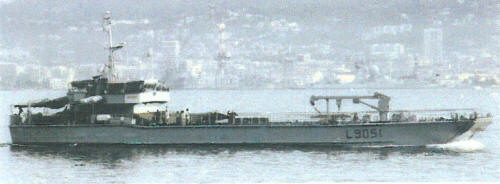

Sabre 2003
© Ivan Gogin, 2016
