GAPEAU utility transport / landing craft (1987)

Name	No	Yard No	Builder	Laid down	Launched	Comp.	Fate
Gapeau	L9090		Serra, La Seyne			2.10.1987	in service (2019)

Displacement standard, t
563 light

Displacement full, t
1089

Length, m

59.2 pp 66.2 oa

Breadth, m
12.5

Draught, m

2.14 mean 3.30 max

No of shafts

2

Machinery

2 Badouin 12 P15 2SR diesels

Power, h. p.

1600

Max speed, kts

11

Fuel, t

diesel oil

Endurance, nm(kts) 1920(10)

Armament

none

Electronic equipment Decca RM914, Furuno FRS1000 radars

Capacity
460 t cargo, 30 passengers

Complement
8

Project history: Designed to serve as support craft for the Centre d'Essais de la Méditerranée missile range. Cargo is stowed on drive-through deck with bow and stern ramps.

Modernizations: None.

Naval service: No significant events.

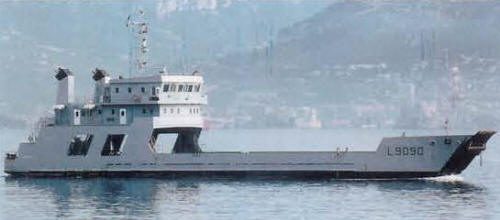

Gapeau 2003

� Ivan Gogin, 2016-19

FRENCH NAVY (FRANCE)

AMPHIBIOUS SHIPS AND CRAFT

GAPEAU utility transport / landing craft (1987)

Displacement standard, t	563 light
Displacement full, t	1089
Length, m	59.2 pp 66.2 oa
Breadth, m	12.5
Draught, m	2.14 mean 3.30 max
No of shafts	2
Machinery	2 Badouin 12 P15 2SR diesels
Power, h. p.	1600
Max speed, kts	11
Fuel, t	diesel oil
Endurance, nm(kts)	1920(10)
Armament	none
Electronic equipment	Decca RM914, Furuno FRS1000 radars
Capacity	460 t cargo, 30 passengers
Complement	8
