Champlain 1990
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| Champlain | L9030 | DCN, Brest | 1973 | 17.11.1973 | 5.10.1974 | stricken 8.2004 | |
| Francis Garnier | L9031 | DCN, Brest | 1973 | 17.11.1973 | 21.6.1974 | stricken 6.2010 | |
| Dumont d'Urville | L9032 | At. Français de l'Ouest, Grand-Quevilly | 15.12.1980 | 27.11.1981 | 5.2.1983 | stricken 2017 | |
| Jacques Cartier | L9033 | At. Français de l'Ouest, Grand-Quevilly | 9.10.1981 | 28.4.1982 | 28.9.1983 | stricken 8.2013 | |
| La Grandière | L9034 | At. Français de l'Ouest, Grand-Quevilly | 27.8.1984 | 11.12.1985 | 20.1.1987 | stricken 10.2016 |
|
Displacement standard, t |
L9030, 9031: 770 L9032-9034: 820 |
|
Displacement full, t |
L9030, 9031: 1330 L9032-9034: 1385 |
|
Length, m |
68.0 pp 80.0 oa |
|
Breadth, m |
13.0 |
|
Draught, m |
3.00 max 2.50 hull |
|
No of shafts |
2 |
|
Machinery |
2 SACM 195 V12 CSHR diesels |
|
Power, h. p. |
3600 |
|
Max speed, kts |
16 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
3500(13) |
|
Armament |
L9030, 9031: 2 x 1 - 40/60 Mk 7, 2 x 1 - 81/12 mortars, 2 x 1 - 12.7/90 L9032-9034: 2 x 1 - 20/90 MIT-20F2, 2 x 1 - 81/12 mortars, 2 x 1 - 12.7/90 |
|
Electronic equipment |
DRBN-32 radar |
|
Military load |
L9030, 9031: 350t of cargo, 138 troops, 12 vehicles L9032-9034: 2 LCVP, 330 t of cargo, 180 troops, 12 vehicles |
|
Complement |
44 |
Project history: Designated BATRAL (Bâtiment de Transport Léger), these vessels are designed for overseas service. They carry a landing company (guépard), comprising five officers, 133 men, six Léopard armoured personnel carriers and six lorries. Two LCVPs are carried on the upper deck. A maximum load of 330t can be carried, and cargo can be transferred ashore either by the 10t hydraulic crane or via the bow ramp, which has a maximum capacity of 40t. The three ships of the second series have improved accommodation for a total of 180 troops, and a higher bridge structure. The last unit, La Grandière, was built for export and subsequently acquired by the Marine Nationale; she has a longer flight deck than her sisters.
Modernizations: 1999, all: - 2 x 1 - 81/12 mortars
Naval service: No significant events.

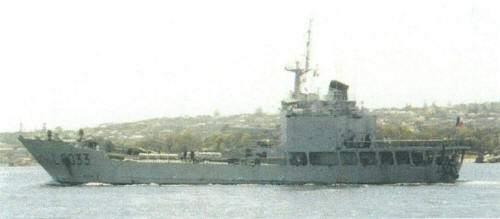

Jacques Cartier 2003
