German RA3 1943
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Ch41, 1940- Audierne | Q041 | Ch de Normandie, Fécamp | 1938 | 1.5.1939 | 1940 | captured by UK 3.7.1940, FNFL 1940, BU 6.1952 | |
| Ch42, 1940- Larmor | Q042 | Ch de Normandie, Fécamp | 1938 | 18.9.1939 | 1940 | captured by UK 3.7.1940, FNFL 1940, BU 1949 | |
| Ch43, 1940- Lavandou | Q043 | Ch de Normandie, Fécamp | 1938 | 23.3.1940 | 1940 | captured by UK 3.7.1940, FNFL 1940, BU 1.1950 | |
| Ch44 | Ch de Normandie, Fécamp | 1938 | 10.6.1940 | 1.1942 // --- | completed as German RA1 | ||
| Ch45 | Ch de Normandie, Fécamp | 1938 | 1941 | 3.1942 // --- | completed as German RA2 | ||
| Ch46 | Ch de Normandie, Fécamp | 1938 | 24.10.1942 | 8.1943 // --- | completed as German RA6 | ||
| Ch47 | Ch de Normandie, Fécamp | 1938 | 1943 | 9.1943 // --- | completed as German RA7 | ||
| Ch48 | Ch de Normandie, Fécamp | 1938 | 8.7.1943 | 10.1943 // --- | completed as German RA8 |
|
Displacement standard, t |
126 |
|
Displacement full, t |
160 |
|
Length, m |
37.4 |
|
Breadth, m |
5.53 |
|
Draught, m |
2.40 |
|
No of shafts |
2 |
|
Machinery |
2 MAN diesels |
|
Power, h. p. |
1130 |
|
Max speed, kts |
15.5 |
|
Fuel, t |
diesel oil 6.5 |
| Endurance, nm(kts) | 1100(13) |
|
Armament |
1 x 1 - 75/35 M1897, 2 x 1 - 8.80, 4 DCT, 1 DCR (10) |
|
Complement |
23 |
Project history: Wooden hull. Ch44, 45 and 46 were completed by Germans as RA4, 3 and 5 respectively. Their fate is unknown. Ch47 and 48 were broken up by Germans on slipways.
Modernizations: 1942, FNFL ships: + 1 x 1 - 40/39 QF Mk VIII.
Naval service: Ch41, 42 and 43 were captured by British 3.7.1940 and later transferred to FNFL.

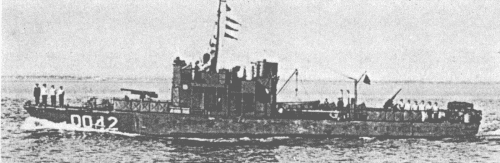

Ch42 1942
