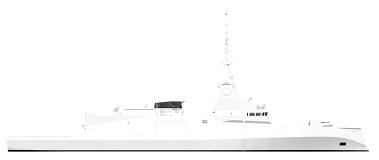

Amiral Ronar'ch
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Amiral Ronar'ch | Naval Group, Lorient | 2020 | 2023 | building (2019) | |||
| Amiral Louzeau | Naval Group, Lorient | 2022 | 2025 | planned (2019) | |||
| Amiral Castex | Naval Group, Lorient | 2024 | 2027 | planned (2019) | |||
| Amiral Nomy | Naval Group, Lorient | 2025 | 2028 | planned (2019) | |||
| Amiral Cabanier | Naval Group, Lorient | 2026 | 2029 | planned (2019) |
|
Displacement standard, t |
|
|
Displacement full, t |
4500 |
|
Length, m |
122.0 |
|
Breadth, m |
18.0 |
|
Draught, m |
|
|
No of shafts |
2 |
|
Machinery |
4 diesels |
|
Power, h. p. |
42900 |
|
Max speed, kts |
27 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
5000(15) |
|
Armament |
2 x 4 MM40 Exocet Block 3C SSM (8 MM40 Block 3C), 1 x 16 Sylver A50 SAM (VLS, 16 Aster-15 + Aster-30), 1 x 1 - 76/62 OTO-Melara Compact SR, 2 x 1 - 20/90 MIT-20F2, 2 x 2 - 324 TT (MU90), 1 helicopter (NH90 Cayman), 1 UAV |
| Military load | 28 commandos |
|
Electronic equipment |
Sea Fire 500 radar suite, Kingklip Mk 11, CAPTAS 4 sonars, SENTINEL ECM suite, SETIS CCS |
|
Complement |
125 |
Project history: FDI (Frégates de Défense et d'Intervention) project intended to replace frigates of La Fayette class.
Modernizations: None
Naval service: No significant events.
