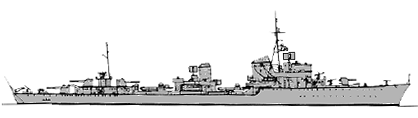

Marceau 1946
Marceau 1954
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Marceau (ex-Z31) | T01, 1950- D601 | 1001 | Deschimag, Bremen, Germany | 9/1940 | 15.5.1941 | 4/1942 // 2.1946 | stricken 1.1958 |
|
Displacement standard, t |
2657 |
|
Displacement full, t |
3691 |
|
Length, m |
121.9 wl 127.0 oa |
|
Breadth, m |
12.0 |
|
Draught, m |
3.92 |
|
No of shafts |
2 |
|
Machinery |
2 sets Deschimag geared steam turbines, 6 Wagner boilers |
|
Power, h. p. |
70000 |
|
Max speed, kts |
36 |
|
Fuel, t |
oil 825 |
| Endurance, nm(kts) | 2950(19) |
|
Armament |
3 x 1 - 149/48 Tbts KC/36, 1 x 1 - 105/45 SK C/32, 6 x 2 - 37/69 FlaK M/42, 2 x 1 - 37/57 FlaK M/43, 1 x 4 - 20/65 C/38, 2 x 2 - 20/65 C/38, 2 x 4 - 533 TT, 4 DCT (30), 60 mines |
| Electronic equipment | FuMO 24, FuMO 63K radars, S-Gerät, GHG sonars |
|
Complement |
332 |
Project history: Ex-German destroyer of 1936A(Mob) type taken over by reparations.
Modernizations: 1950: - 6 x 2 - 37/69, 2 x 1 - 37/57, 1 x 4 - 20/65, 2 x 2 - 20/65, FuMO 24, FuMO 63K radars; + 8 x 1 - 40/60 Mk 3, US-made radars
Naval service: No significant events.
Many thanks to Wolfgang Stöhr for additional information on this page.
