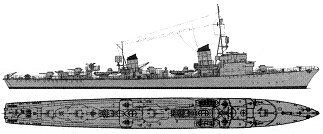

L`Alsacien 1946
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| L`Alsacien (ex-T23) | T07, 1950- D604 | 1482 | Schichau, Elbing, Germany | 8.1940 | 14.6.1941 | 6.1942 // 2.1946 | stricken 6.1954 |
| Le Lorrain (ex-T28) | T08, 1950- D605 | 1487 | Schichau, Elbing, Germany | 9.1941 | 8.10.1942 | 6.1943 // 2.1946 | hulk 10.1955 |
|
Displacement standard, t |
1294 |
|
Displacement full, t |
1754 |
|
Length, m |
97.0 wl 102.5 oa |
|
Breadth, m |
10.0 |
|
Draught, m |
2.66 normal 3.22 max |
|
No of shafts |
2 |
|
Machinery |
2 sets Wagner geared steam turbines, 4 Wagner boilers |
|
Power, h. p. |
29000 |
|
Max speed, kts |
32.5 |
|
Fuel, t |
oil 374 |
| Endurance, nm(kts) | 5000(19) |
|
Armament |
L`Alsacien: 4 x 1 - 105/45 SK C/32, 2 x 2 - 37/83 SK C/30, 3 x 4 - 20/65 C/38, 3 x 1 - 20/65 C/38, 2 x 3 - 533 TT, 2 DCT (32), 50 mines Le Lorrain: 4 x 1 - 105/45 SK C/32, 2 x 2 - 37/83 SK C/30, 1 x 4 - 20/65 C/38, 2 x 2 - 20/65 C/38, 2 x 3 - 533 TT, 2 DCT (32), 50 mines |
|
Electronic equipment |
2x FuMO 63 radars, S-Gerät sonar, GHG hydrophone, FuMB3 Bali, FuMB 4 Sumatra ECM suites |
|
Complement |
206 |
Project history: Ex-German fleet torpedo boats of 1939 type taken over by reparations.
Modernizations: None.
Naval service: No significant events.
Many thanks to Wolfgang Stöhr for additional information on this page.
