Sans Souci as designed
SG1 (ex-Sans Peur) 1945
La Pérouse 1955
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Sans Souci | 311 | A C de la Loire, St. Nazaire | 1938 | 28.11.1940 | 11.1942 // --- | completed as German escort SG3 (ex-Jupiter, ex-Uranus) | |
| La Pérouse (ex-Sans Pareil) | A32, 1950- F750 | 312 | A C de la Loire, St. Nazaire | 1939 | 28.11.1940 | 9.1943 // 5.1947 | completed as German escort SG4 (ex-Saturn, ex-Merkur), returned 5.1945, commissioned as survey vessel / aviso, stricken 1969 |
| Beautemps Beaupré (ex-Sans Peur) | A33, 1950- F751 | S9 | A C de St. Nazaire - Penhoët | 1940 | 2.10.1940 | 8.1942 // 5.1947 | completed as German escort SG1 (ex-Merkur, ex-Jupiter), returned 5.1945, commissioned as survey vessel / aviso, stricken 1969 |
| Sans Reproche | T9 | A C de St. Nazaire - Penhoët | 1938 | 30.10.1940 | 9.1942 // --- | completed as German escort SG2 (ex-Uranus, ex-Saturn) |
| Data variant | as designed |
|
Displacement standard, t |
1372 |
|
Displacement full, t |
1760 |
|
Length, m |
90.0 pp 95.0 oa |
|
Breadth, m |
11.8 |
|
Draught, m |
3.20 |
|
No of shafts |
2 |
|
Machinery |
2 Sulzer diesels |
|
Power, h. p. |
4200 |
|
Max speed, kts |
18 |
|
Fuel, t |
diesel oil 256 |
| Endurance, nm(kts) | 12000(10) |
|
Armament |
1 x 1 - 75/50 M1927, seaplanes |
| Complement | 644 |
| Data variant | La Pérouse, Beautemps Beaupré as returned |
|
Displacement standard, t |
1500 |
|
Displacement full, t |
2100 |
|
Length, m |
92.0 wl 95.0 oa |
|
Breadth, m |
11.8 |
|
Draught, m |
3.20 normal, 3.64 max |
|
No of shafts |
2 |
|
Machinery |
2 Sulzer diesels |
|
Power, h. p. |
4140 |
|
Max speed, kts |
16.7 |
|
Fuel, t |
diesel oil 256 |
| Endurance, nm(kts) | 12000(10) |
|
Armament |
La Pérouse: 2 x 1 -105/45 SK C/32, 2 x 2 - 37/83 SK C/30, 6 x 2 - 20/65 C/38 Beautemps Beaupré: 3 x 1 - 105/45 SK C/32, 2 x 2 - 37/83 SK C/30, 6 x 2 - 20/65 C/38 |
| Electronic equipment | FuMO 28 radar |
|
Complement |
178 |
Project history: These seaplane tenders were captured by German troops in St. Nazaire on the stocks in June, 1940 at various availability stages. It was originally planned to complete them as air defence and fighter direction ships (Flügsicherungsschiffe) under names Uranus, Saturnus, Jupiter and Merkur. In February, 1941, control on building was transferred to ministry of aviation, however in April, 1942 the control was returned to Kriegsmarine, and ex-depot ships were completed as fast escorts (Schnelle Geleitboote) SG1-4. They were armed by German artillery, purposed, first of all, on AA role. During service hull weakness and bad seaworthiness have come to light. After war two survived SG1 and SG4 were returned to France and after repair commissioned as "Avisos Hydrographiques" ("aviso / survey ships") but in 1950 received numbers with F- prefixes, so we can to sign them as frigates.
Modernizations: to 1954, La Pérouse: was armed with 1 x 1 - 105/45 SK C/32, 1 x 2 - 40/60 Mk 1, 4 x 1 - 20/70 Mk 10, 2 x 24 - 178 Hedgehog Mk 10.11 ASWRL, radars, sonar
to 1954, Beautemps Beaupré: was armed with 1 x 1 - 105/45 SK C/32, 2 x 2 - 40/60 Mk 1, 4 x 1 - 20/70 Mk 10, 2 x 24 - 178 Hedgehog Mk 10.11 ASWRL, radars, sonar
Naval service: No significant events.

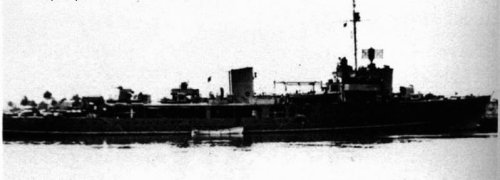

SG1

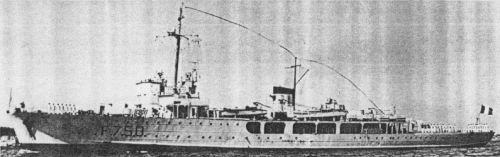

La Pérouse 1954
Many thanks to Wolfgang Stöhr for additional information on this page.
© Ivan Gogin, 2008-15
