THÉMIS patrol vessel (2004)
Thémis 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Thémis | PM41 | CMN, Cherbourg | 13.5.2003 | 5.4.2004 | 7.5.2004 | in service (2019) |
|
Displacement standard, t |
|
|
Displacement full, t |
409 |
|
Length, m |
52.5 |
|
Breadth, m |
9.00 |
|
Draught, m |
2.27 |
|
No of shafts |
2 |
|
Machinery |
2 MTU 16V4000 M70 diesels |
|
Power, h. p. |
6310 |
|
Max speed, kts |
21 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
3000(12) |
|
Armament |
1 x 1 - 12.7/90 |
|
Electronic equipment |
2x radars |
|
Complement |
17 + 4 passengers |
Project history: Ordered in 2002. Employs the same hull form as the French Navy's P 400 patrol craft. Has fin stabilizers and carries two 6m SRMN600 RIB inspection launches, each powered by a 140hp gasoline outboard.
Modernizations: None.
Naval service: No significant events.

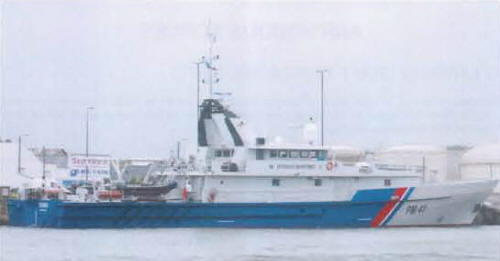

Thémis 2007
