FRENCH NAVY (FRANCE)

COASTAL FORCES

TRIDENT missile armed patrol boats (1976 - 1977)

Glaive 1977

Name No Yard No Builder Laid down Launched Comp Fate
Trident P670   Auroux, Arcachon 3.12.1974 15.4.1976 17.12.1976 Gendarmerie 2.1987, stricken 7.1996
Glaive P671   Auroux, Arcachon 16.1.1975 25.8.1976 2.4.1977 Gendarmerie 9.1987, stricken 6.2015
Épée P672   CMN, Cherbourg 10.4.1975 31.3.1976 9.10.1976 Gendarmerie 2.1986, stricken 6.2008
Pertuisane P673   CMN, Cherbourg 26.8.1975 2.7.1976 20.1.1977 Gendarmerie 8.1988, stricken 7.1996
Rapière P674   Auroux, Arcachon 15.2.1981 3.6.1981 1.11.1981 to Mauritania 5.1982 (ديكس جويلية [Dix Juillet])



Displacement standard, t

120

Displacement full, t

150

Length, m

38.5 wl 40.7 oa

Breadth, m

5.90

Draught, m

1.60

No of shafts

2

Machinery

2 AGO 195V12 CZSHR diesels

Power, h. p.

5000

Max speed, kts

26

Fuel, t

diesel oil

Endurance, nm(kts)

1500(15)

Armament

P670-673: 6 x 1 SS.12 SSM (6 SS.12), 1 x 1 - 40/60 Mk 3, 1 x 1 - 12.7/90

P674: 1 x 1 - 40/60 Mk 3, 2 x 1 - 12.7/90

Electronic equipment

DRBN-32 radar

Complement

19

Project history: Intended for the surveillance and control of territorial waters, these vessels were to have been the first of a series of thirty patrouilleurs projected under the plan bleu, of which sixteen were for overseas service. In the event they proved too small for the latter task, and after four boats had been completed the programme was abandoned in favour of the larger Super PATRA.

Modernizations: late 1970s, all completed: - 6 x 1 SS.12 SSM; + 1 x 1 - 12.7/90

Naval service: No significant events.

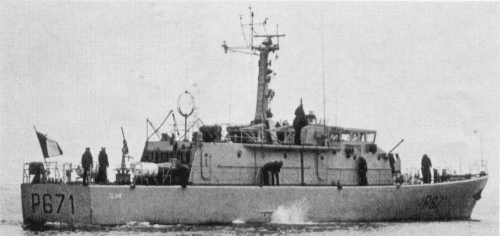

Glaive 1980

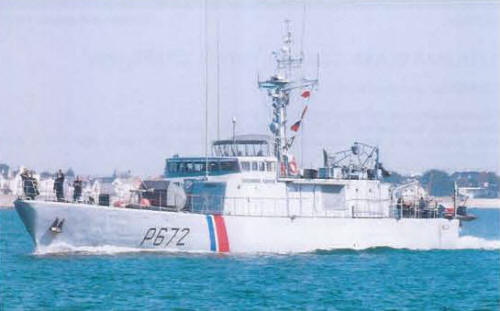

Épée 2006
