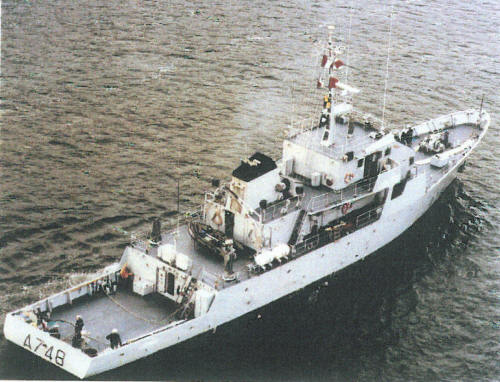

Léopard 1990
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Léopard | A748 | SICNAV, St-Malo | 6.4.1981 | 4.6.1981 | 4.12.1982 | in service (2019) | |
| Panthère | A749 | SICNAV, St-Malo | 9.6.1981 | 3.9.1981 | 4.12.1982 | in service (2019) | |
| Jaguar | A750 | SICNAV, St-Malo | 27.9.1981 | 29.10.1981 | 18.12.1982 | in service (2019) | |
| Lynx | A751 | Le Perriere, Lorient | 23.7.1981 | 27.2.1982 | 18.12.1982 | in service (2019) | |
| Guépard | A752 | SICNAV, St-Malo | 11.10.1982 | 1.12.1982 | 1.7.1983 | in service (2019) | |
| Chacal | A753 | SFCN, Villeneuve-la-Garenne | 11.10.1982 | 11.2.1983 | 10.9.1983 | in service (2019) | |
| Tigre | A754 | Le Perriere, Lorient | 16.4.1982 | 8.10.1982 | 1.7.1983 | in service (2019) | |
| Lion | A755 | Le Perriere, Lorient | 21.2.1982 | 13.12.1982 | 10.9.1983 | in service (2019) |
|
Displacement standard, t |
335 |
|
Displacement full, t |
460 |
|
Length, m |
40.2 pp 43.0 oa |
|
Breadth, m |
8.30 |
|
Draught, m |
3.21 |
|
No of shafts |
2 |
|
Machinery |
2 SACM 75 V16 ASHR diesels |
|
Power, h. p. |
2200 |
|
Max speed, kts |
15 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
4100(12) |
|
Armament |
2 x 1 - 20/70 Mk 10 Mod. 23 |
|
Electronic equipment |
DRBN-32 radar |
|
Complement |
14 + 4 instructors + 18 trainees |
Project history: Navigational training craft, also for use as antipollution patrol vessels.
Modernizations: 2002, all: - 2 x 1 - 20/70; + 2 x 1 - 12.7/90
2011-2012, all: re-engined with 2 Badouin 12M26-2 diesels (335/470t, 2200hp, 15kts)
Naval service: No significant events.
Léopard 2003
© Ivan Gogin, 2016-19
