Richelieu 1881
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Richelieu | Arsenal de Toulon | 1.12.1869 | 3.12.1873 | 12.4.1875 | condemned 3.1900 |
|
Displacement normal, t |
8984 |
|
Displacement full, t |
|
|
Length, m |
98.2 wl 101.7 oa |
|
Breadth, m |
17.5 |
|
Draught, m |
8.69 max |
|
No of shafts |
2 |
|
Machinery |
2 HRCR compound, 8 oval boilers |
|
Power, h. p. |
4200 |
|
Max speed, kts |
13 |
|
Fuel, t |
coal 640 |
|
Endurance, nm(kts) |
2410(10) |
|
Armour, mm |
wrought iron; belt: 220 - 180, over ram 110, battery: 160, barbettes: 160, deck: 13, CT: 100 |
|
Armament |
6 x 1 - 274/18 M1870, 5 x 1 - 240/18 M1870, 10 x 1 - 120/25 M1870, 8 x 5 - 37/20 M1885 |
|
Complement |
750 |
Project history: A wooden-hulled central battery ship originally intended to be of 7400t with only 240mm guns. The 274mm guns were in a similar battery to that in Friedland with 4 240mm in barbettes above the corners of the battery and the fifth gun firing forward under the forecastle. There were more compartments than in Friedland and the spur ram projected 3m, while twin screws were intended to give greater handiness in ramming. Metacentric height was only about 0.45m and although originally full rigged, Richelieu later had fore and aft sails only.
Ship protection: The belt was complete and the unarmoured wooden sides above were plated by 15mm iron.
Modernizations: 1870s: - 10 x 1 - 120/25; + 6 x 1 - 139/21 M1870
1880s: + 10 x 5 - 37/20 M1885, 4 - 350 TT (aw, beam)
Naval service: She capsized following a fire on 29.12.1880 at Toulon but was raised and repaired. In September 1885 she was used for trials of torpedo nets at up to 4kts. She sank in the Bay of Biscay after sale in 1911.

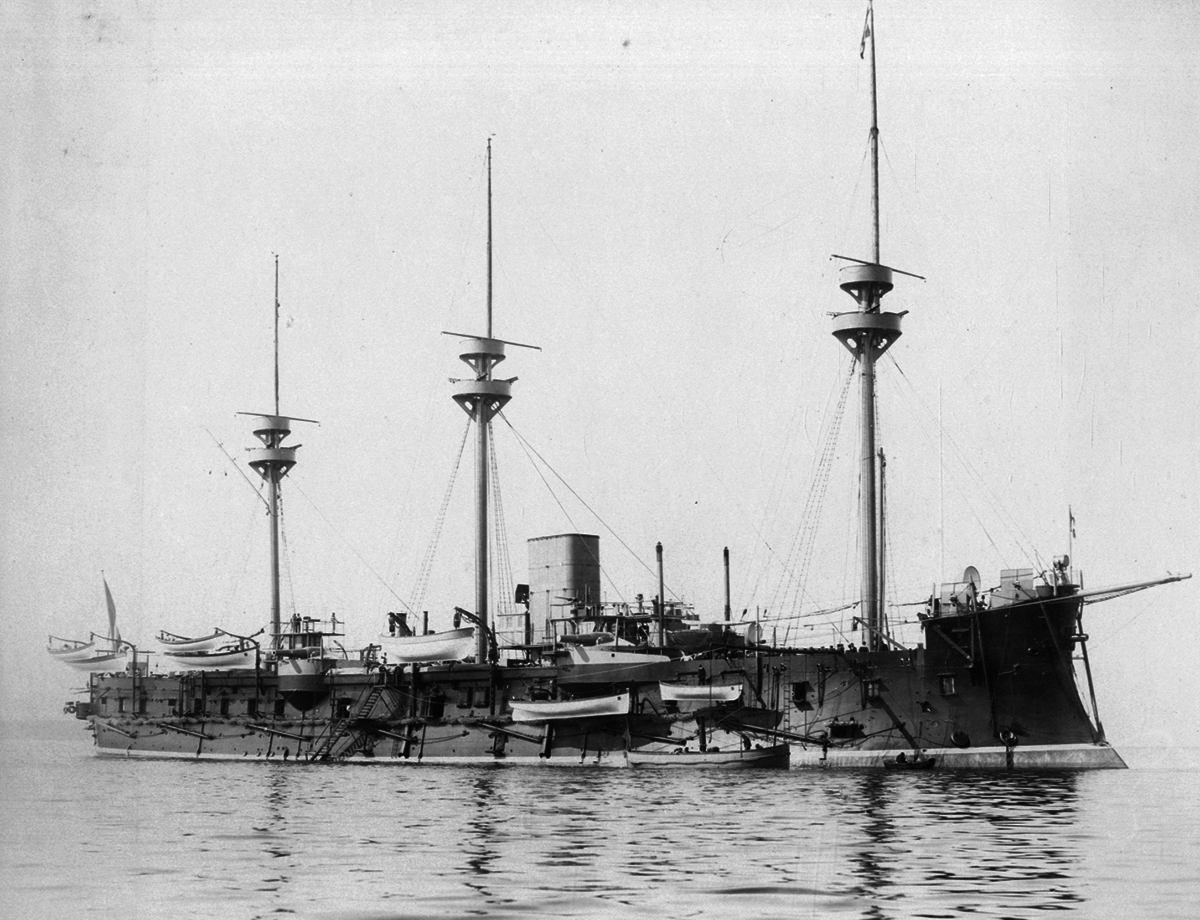

Richelieu

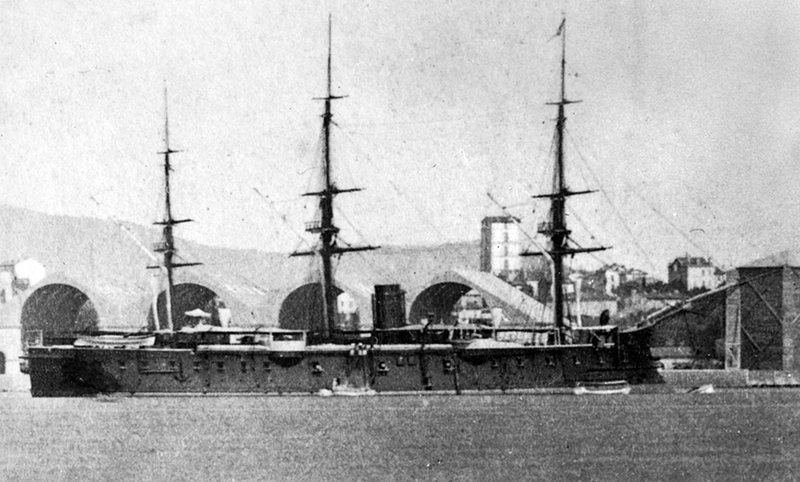

Richelieu 1875
