Bouvines 1894
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Amiral Tréhouart | Arsenal de Lorient | 10.1890 | 16.5.1893 | 5.1896 | stricken 1922 | ||
| Bouvines | F C de la Méditerranée, La Seyne | 9.1890 | 29.3.1892 | 12.1894 | stricken 1920 |
|
Displacement normal, t |
6681 |
|
Displacement full, t |
|
|
Length, m |
86.5 pp 89.7 oa |
|
Breadth, m |
17.8 |
|
Draught, m |
7.14 max |
|
No of shafts |
2 |
|
Machinery |
Bouvines: 2 VTE, 16 Lagrafel d`Allest boilers Amiral Tréhouart: 2 VTE, 16 Belleville boilers |
|
Power, h. p. |
8500 |
|
Max speed, kts |
16.5 - 17 |
|
Fuel, t |
coal 511 |
| Endurance, nm(kts) | 1700(10) |
|
Armour, mm |
Nickel steel, steel: belt: 450 - 250, turrets: 450, turret bases: 400, CT: 100, deck: 110 |
|
Armament |
Bouvines: 2 x 1 - 305/45 M1887, 8 x 1 - 100/45 M1891, 4 x 1 - 47/40 M1885, 10 x 5 - 37/20 M1885, 2 - 450 TT (beam, aw) Amiral Tréhouart: 2 x 1 - 305/45 M1887, 8 x 1 - 100/45 M1891, 4 x 1 - 47/40 M1885, 4 x 1 - 37/20 M1885, 8 x 5 - 37/20 M1885, 2 - 450 TT (beam, aw) |
|
Complement |
Bouvines: 343 Amiral Tréhouart: 362 |
Project history: Development of Jemmapes class, differing by extension of forecastle deck to mainmast.
Ship protection: Main belt was 450mm amidships, 300mm forward and 400mm aft, tapering everywhere to 250mm at lower edge. Turrets had 450mm sides and 70mm crowns. Very heavy curved main deck laid over 10mm plating and was 110-70mm amidships, 90mm fwd and 70mm aft. Ships had different appearance: Amiral Tréhouart had one funnel and Bouvines had two.
Modernizations: None.
Naval service: In days of WWI both were based at Cherbourg and used as depot ships, did not participating in naval operations.

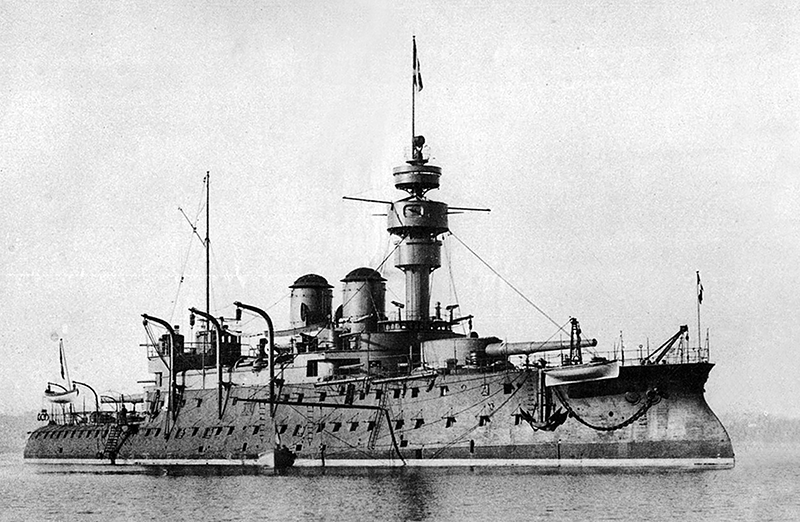

Bouvines just completed

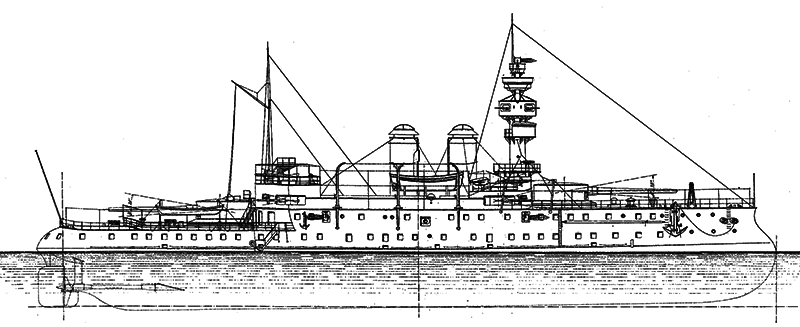

Bouvines

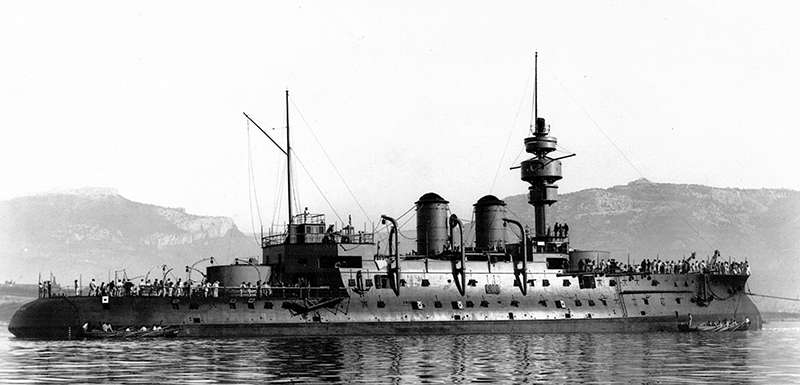

Bouvines during trials without guns

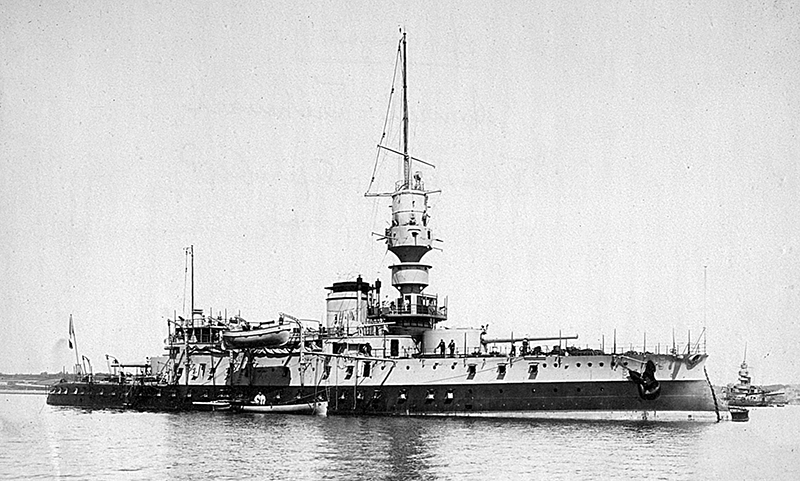

Amiral Tréhouart
