Louhi 1940
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| M1 (ex-Воин [Voin]), 1936- Louhi | Kolomna S Yd, Russia | ? | 1916 | 1916 // 4.1918 | sunk 12.1.1945 |
   Displacement
	normal, t 640 Displacement
	full, t Length, m 50.0 Breadth, m 8.00 Draught, m 2.70 No of shafts 1 Machinery 1 VTE,
	3 boilers Power, h. p. 800 Max speed, kts 12 Fuel, t coal
	50 Armament 2 x 1 - 75/48 Canet, 150 mines Complement 46 Project history: Former Russian
minelayer Voin. At escape of Baltic fleet from Finland
she was abandoned at Helsingfors where in 1918 was captured by Finns.  Modernizations: late 1930s: + 2 x 1 - 40/39
QF Mk II, 1 x 1 - 20/60 Madsen.














    776




































































	Endurance, nm(kts)

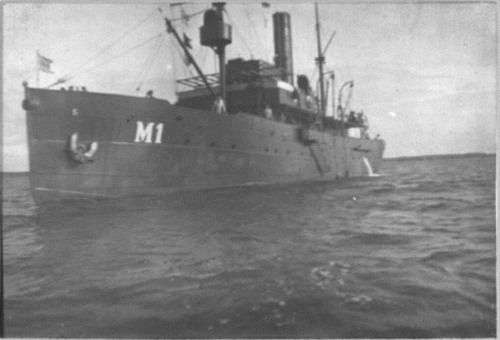

M1
