Kuha 1 1980
Kuha 1 2010
|
Names |
21 Kuha 1 22 Kuha 2 23 Kuha 3 24 Kuha 4 25 Kuha 5 26 Kuha 6 |
|
Builders |
Laivateollisuus, Turku: 21-26 |
|
Completed |
1974: 21, 22 1975: 23-26 |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
2012: 22, 25 2013: 21 in service (2019): 23, 24, 26 |
|
Displacement standard, t |
|
|
Displacement full, t |
90 |
|
Length, m |
26.6 |
|
Breadth, m |
6.90 |
|
Draught, m |
2.00 |
|
No of shafts |
2 outboard-drive |
|
Machinery |
2 Cummins NT-380M diesels |
|
Power, h. p. |
600 |
|
Max speed, kts |
12 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | |
|
Armament |
1 x 2 - 23/87 Sako, 1 x 1 - 12.7/79, Type F-82 magnetic or mechanical or acoustic minesweeping gear |
| Electronic equipment | Decca radar, control equipment for Kiiski drone minesweeper |
| Complement | 14 |
Project history: GRP hull, plans for 8 additional units were canceled. Engines are flexibly mounted, drive rudder/propellers through hydrostatic transmissions.
Modernizations: 1997, Kuha 1; 1998, Kuha 2-4; 1999, Kuha 5; 2000, Kuha 6: lengthened (31.7x6.90x2.00m, 125t full load); - Type F-82 magnetic minesweeping gear; + AMS magnetic minesweeping gear, Seabat 6012 sonar
Naval service: No significant events.

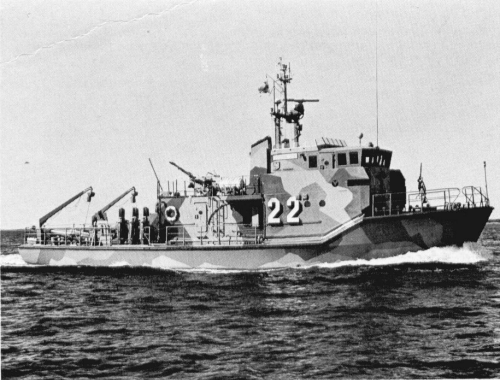

Kuha 22 1979

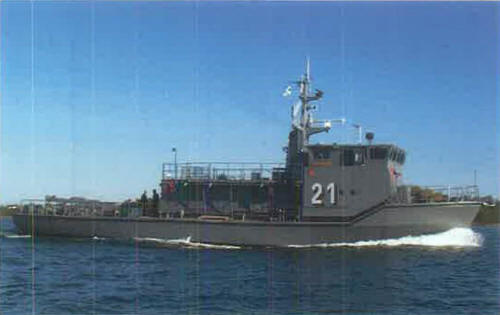

Kuha 21 2001
