KATANPÄÄ mine countermeasures ships (2012-2016)

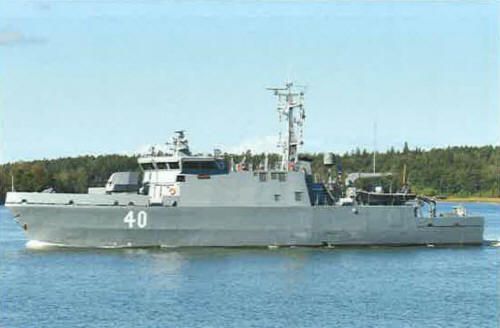

Katanpää 2015

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Katanpää	40		Intermarine, Sarzana, Italy	4.7.2007	16.6.2009	4.5.2012	in service (2019)
Purunpää	41		Intermarine, Sarzana, Italy	3.2008	26.8.2010	20.8.2013	in service (2019)
Vahterpää	42		Intermarine, Sarzana, Italy	2.2009	3.11.2011	2.11.2016	in service (2019)

Displacement standard, t

Displacement full, t
680

Length, m

52.4

Breadth, m

9.90

Draught, m

3.10

No of shafts

2 vertical cycloidal propellers

Machinery

2 MTU 8V396 TE74K diesels

Power, h. p.

2720

Max speed, kts

13

Fuel, t

diesel oil

Endurance, nm(kts) 1600(12)

Armament

1 x 1 - 40/70 Bofors 315, 2 x 1 - 12.7/90, Sea Fox, Double Eagle Mk 2, REMUS 100, Hugin 1000MR USVs

Electronic equipment Furuno radar, MSP-500 e/o system, HMS-12M, Klein 5000 sonars, IMCMS CCS

Complement

38

Project history: Based on the Italian Gaeta class. Planned building of third unit in Finland was cancelled and transferred to Italy. GRP hull, electric motors are used while minehunting.

Modernizations: None.

Naval service: No significant events.

Katanpää 2014

FINNISH NAVY (FINLAND)

MINE WARFARE SHIPS

KATANPÄÄ mine countermeasures ships (2012-2016)

Displacement standard, t
Displacement full, t	680
Length, m	52.4
Breadth, m	9.90
Draught, m	3.10
No of shafts	2 vertical cycloidal propellers
Machinery	2 MTU 8V396 TE74K diesels
Power, h. p.	2720
Max speed, kts	13
Fuel, t	diesel oil
Endurance, nm(kts)	1600(12)
Armament	1 x 1 - 40/70 Bofors 315, 2 x 1 - 12.7/90, Sea Fox, Double Eagle Mk 2, REMUS 100, Hugin 1000MR USVs
Electronic equipment	Furuno radar, MSP-500 e/o system, HMS-12M, Klein 5000 sonars, IMCMS CCS
Complement	38
