HÄMEENMAA minelayers (1992)

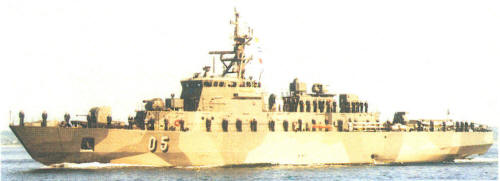

Hämeenmaa 2000

Hämeenmaa 2010

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Hämeenmaa	02		Finnyards, Rauma	2.4.1991	11.11.1991	15.4.1992	in service (2019)
Uusimaa	05		Finnyards, Rauma	12.11.1991	6.1992	2.12.1992	in service (2019)

Displacement standard, t
1000

Displacement full, t
1330

Length, m

69.6 pp 77.0 oa

Breadth, m

11.6

Draught, m

3.00

No of shafts

2

Machinery

2 Wärtsilä-Vasa 16V22MD diesels

Power, h. p.

7070

Max speed, kts

20

Fuel, t

diesel oil

Endurance, nm(kts)

Armament

2 x 1 - 40/70 Bofors 315, 1 x 6 Sako SAM (6 Mistral), 2 x 2 - 23/87 Sako, 2 x 5 RBU-1200 ASWRL, 2 DCR (12), 100-150 mines

Electronic equipment 3x Selesmar radars, SS304 sonar, Matilda ECM suite, 2x Super Barricade decoy RL

Complement

45

Project history: Built with bow and stern ramps and were able to serve as logistic transports.

Modernizations: 2007, both: - 2 x 1 - 40/70, 1 x 6 Sako SAM, 2 x 2 - 23/87, 1x Selesmar radar, SS304 sonar, 2x Super Barricade decoy RL; + 1 x 8 Umkhonto SAM (VLS, 8 Umkhonto), 1 x 1 - 57/70 Bofors SAK-57 Mk 1, 2 x 1 - 12.7/79, helicopter deck, TRS-3D 16, CEROS 200 radars, SS249 sonar, EOMS, 2x OGR e/o systems, 2x MASS decoy RL, ANCS 2000 CCS

Naval service: No significant events.

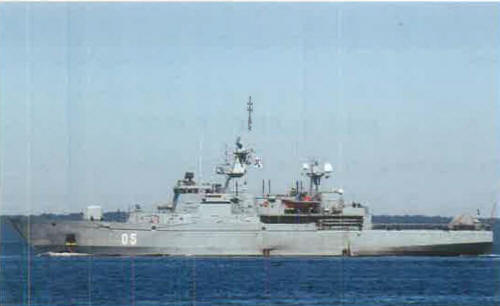

Uusimaa 2001

Uusimaa 2014

FINNISH NAVY (FINLAND)

MINE WARFARE SHIPS

HÄMEENMAA minelayers (1992)

Displacement standard, t	1000
Displacement full, t	1330
Length, m	69.6 pp 77.0 oa
Breadth, m	11.6
Draught, m	3.00
No of shafts	2
Machinery	2 Wärtsilä-Vasa 16V22MD diesels
Power, h. p.	7070
Max speed, kts	20
Fuel, t	diesel oil
Endurance, nm(kts)
Armament	2 x 1 - 40/70 Bofors 315, 1 x 6 Sako SAM (6 Mistral), 2 x 2 - 23/87 Sako, 2 x 5 RBU-1200 ASWRL, 2 DCR (12), 100-150 mines
Electronic equipment	3x Selesmar radars, SS304 sonar, Matilda ECM suite, 2x Super Barricade decoy RL
Complement	45
