Turunmaa 1975
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Turunmaa | 03 | 381 | Wärtsilä, Helsinki | 3/1967 | 11.7.1967 | 29.8.1968 | stricken 1999 |
| Karjala | 04 | 382 | Wärtsilä, Helsinki | 3/1967 | 16.8.1967 | 21.10.1968 | stricken 2001 |
|
Displacement standard, t |
650 |
|
Displacement normal, t |
770 |
|
Length, m |
70.0 wl 74.0 oa |
|
Breadth, m |
7.80 |
|
Draught, m |
2.40 |
|
No of shafts |
3 |
|
Machinery |
CODOG: 1 Olympus TM3B gas turbine / 3 MTU diesels |
|
Power, h. p. |
16180 / 4050 |
|
Max speed, kts |
35 / 17 |
|
Fuel, t |
diesel oil 120 |
| Endurance, nm(kts) | 2500(14) |
|
Armament |
1 x 1 - 120/46 Bofors TAK, 2 x 1 - 40/70 Bofors 315, 1 x 2 - 23/81 ZU-23-2, 2 x 5 RBU-1200 ASWRL, 2 DCR, 6 - 103 RFL |
| Sensors | WM22, nav. radars, sonar |
|
Complement |
168 |
Project history: Engine exhausts taken astern either side of the quarterdeck to discharge as one 15m astern, thus providing an IR decoy and allowing the ships to steam at 12 kts without using the propellers. 103mm RF launchers were mounted on the main gun mount sides.
Modernizations: 1978, both: + 9LV200 Mk 2 radar
1986, both: new sonar, ECM suite
Naval service: No significant events.

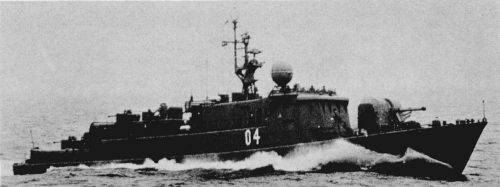

Karjala 1978
Many thanks to Wolfgang Stoehr for additional information on this page.
