FINNISH NAVY (FINLAND)

COAST GUARD SHIPS AND CRAFT

TELKKÄ Coast Guard patrol craft (1999-2004)

Name

No

Yard No

Builder

Laid down

Launched

Comp

Fate

Telkkä





Workboat Työvene, Uusikaupunki





7/1999

in service (2019)

Tavi





Workboat Työvene, Uusikaupunki





2002

in service (2019)

Tiira





Workboat Työvene, Uusikaupunki





27.5.2004

in service (2019)



Displacement standard, t



Displacement full, t

400

Length, m

49.2

Breadth, m

7.50

Draught, m

3.70 max

No of shafts

2

Machinery

Telkkä: 2 Cummins-Wärtsilä 16V170 diesels

others: 2 Wärtsilä 12V200 diesels

Power, h. p.

Telkkä: 5580

others: 6700

Max speed, kts

Telkkä: 20.5

others: 22

Fuel, t

diesel oil 44

Endurance, nm(kts)



Armament

1 x 1 - 20/70 Mk 10

Electronic equipment

radar, SONAC-PTA sonar

Complement

8 + 12 passengers

Project history: Steel hull with aluminium superstructure. Have oil-spill recovery equipment.

Modernizations: None.

Naval service: No significant events.

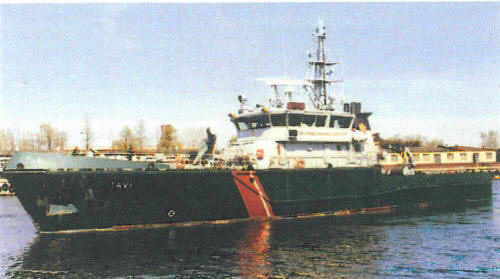

Tavi 2003
