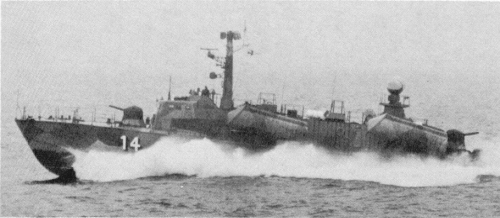

TUIMA fast attack craft (missile) (1974-1975)

Tuima 1980

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Tuima	11		Vympel, Rybinsk, USSR			1974	stricken 2002, to Egypt 11.2006 (767)
Tuuli	12		Vympel, Rybinsk, USSR			1974	stricken 2002, to Egypt 11.2006 (766)
Tuisku	14		Vympel, Rybinsk, USSR			1975	stricken 2002, to Egypt 11.2006 (768)
Tyrsky	15		Vympel, Rybinsk, USSR			1975	stricken 2002, to Egypt 11.2006 (765)

Displacement standard, t
184

Displacement full, t

243

Length, m

38.6

Breadth, m

7.60

Draught, m

2.00 hull 3.10 propellers

No of shafts

3

Machinery

3 M-504B diesels

Power, h. p.

15000

Max speed, kts

42

Fuel, t

diesel oil

Endurance, nm(kts) 1620(15)

Armament

4 x 1 P-15U SSM (4 P-15U), 2 x 2 - 30/71 AK-230

Electronic equipment Rangout, MR-104 Rys' radars

Complement

29

Project history: Soviet project 205ER built for export.

Modernizations: 1993, Tuima; 1994, Tuuli; 1996, Tuisku, Tyrsky: - 4 x 1 P-15U SSM, Rangout, MR-104 Rys' radars; + 30 mines, Raytheon radar

Naval service: No significant events.

Tuuli 1978

FINNISH NAVY (FINLAND)

COASTAL FORCES

TUIMA fast attack craft (missile) (1974-1975)

Displacement standard, t	184
Displacement full, t	243
Length, m	38.6
Breadth, m	7.60
Draught, m	2.00 hull 3.10 propellers
No of shafts	3
Machinery	3 M-504B diesels
Power, h. p.	15000
Max speed, kts	42
Fuel, t	diesel oil
Endurance, nm(kts)	1620(15)
Armament	4 x 1 P-15U SSM (4 P-15U), 2 x 2 - 30/71 AK-230
Electronic equipment	Rangout, MR-104 Rys' radars
Complement	29
