Rauma 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Rauma | 70 | Hollming, Rauma | 1989 | 18.10.1990 | in service (2019) | ||
| Raahe | 71 | Hollming, Rauma | 1990 | 20.8.1991 | in service (2019) | ||
| Porvoo | 72 | Hollming, Rauma | 1991 | 27.4.1992 | in service (2019) | ||
| Naantali | 73 | Hollming, Rauma | 1992 | 23.6.1992 | in service (2019) |
Displacement
standard, t 215 Displacement
full, t 250 Length, m 41.0 pp 48.0
oa Breadth, m 8.00 Draught, m 3.20 No of shafts 2
waterjets Machinery 2 MTU 16V538
TB92 diesels Power, h. p. 8000 Max speed, kts 30 Fuel, t diesel oil
Endurance, nm(kts) Armament (2 x 2 + 2 x
1) RBS-15SF SSM (6 RBS-15SF), 1 x 6 Sako SAM (6 Mistral), 1 x 1 - 40/70
Bofors 350, 2 x 1 - 12.7/79, 4 x 9 Elma LLS.920 ASWRL, mines
Electronic equipment Raytheon,
9GA208, 9LV225 radars, 9LV200 Mk 3 e/o system, SS304, SONAC-PTA (provision
for) sonars, Matilda-E ECM suite, Philax decoy RL, COLDS laser
countermeasure, 9LV200 Mk 3 CCS Complement 19
Project history: Shorter, shallower-draft successor to Helsinki class, ordered 21.8.1987. Sako barbette can be used as for sextuple Mistral launcher as for twin 23mm AA gun.
Modernizations: 2000s, all: - (2 x 2 + 2 x 1) RBS-15SF SSM; + (2 x 2 + 2 x 1) RBS-15SF3 SSM (6 RBS-15SF3)
2010-2014, all: - 9LV200 Mk 3 e/o system, SONAC-PTA sonar, Matilda-E ECM suite, Philax decoy RL, 9LV200 Mk 3 CCS; + 9LV Mk 4 e/o system, ST-2400 sonar, SIEWS ECM suite, 2x MASS decoy RL, 9LV Mk 4 CCS
Naval service: No significant events.

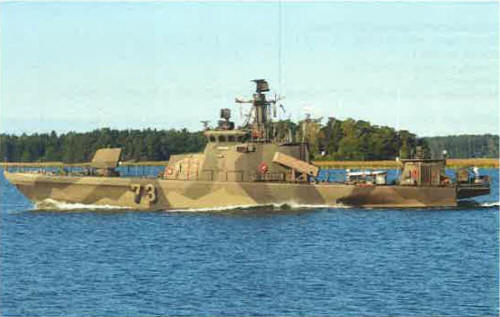

Naantali 2014
