FINNISH NAVY (FINLAND)

COASTAL FORCES

HELSINKI fast attack craft (missile) (1981-1986)

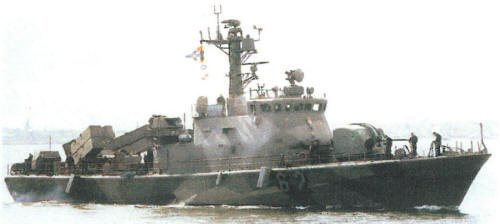

Helsinki 1990

Name No Yard No Builder Laid down Launched Comp Fate
Helsinki 60 428 Wärtsilä, Helsinki 3.9.1980 5.11.1980 1.9.1981 stricken 2002
Turku 61 465 Wärtsilä, Helsinki 1.1.1984 1985 1.6.1985 stricken 2002
Oulu 62 468 Wärtsilä, Helsinki     1.10.1985 to Croatia 10.2008 (Vukovar)
Kotka 63 469 Wärtsilä, Helsinki     16.6.1986 to Croatia 10.2008 (Dubrovnik)



Displacement standard, t

250

Displacement full, t

280

Length, m

45.0

Breadth, m

8.90

Draught, m

3.00 propellers

No of shafts

3

Machinery

3 MTU 16V538 TB92 diesels

Power, h. p.

12000

Max speed, kts

30

Fuel, t

diesel oil

Endurance, nm(kts)



Armament

2 x 4 RBS-15SF SSM (8 RBS-15SF), 1 x 1 - 57/70 Bofors SAK-1, 2 x 2 - 23/87 Sako, 2 DCR (6), mines instead of SSMs and DCRs

Electronic equipment

60: Raytheon, 9GA208, 9LV225 radars, SS304, SONAC-PTA sonars, DR-2000U ECM suite, 2x Barricade decoy RL

61-63: Raytheon, 9GA208, 9LV225 radars, EOS-400 e/o system, SS304, SONAC-PTA (instead of 1 x 4 RBS-15SF SSM) sonars, DR-2000U ECM suite, 2x Barricade decoy RL

Complement

30

Project history: Prototype was ordered 5.10.1978 and three further 13.1.1981. Class of 12 was planned but construction was halted in favour of Rauma class. Aluminium hull. Only 3 or 4 SSMs and SONAC-PTA towed sonar were usually carried.

Modernizations: late 1980s, Helsinki: + EOS-400 e/o system

early 2000s, all: - 2 x 2 - 23/87; + 2 x 6 Sako SAM (12 Mistral)

Naval service: No significant events.

Oulu 2003

Many thanks to Wolfgang Stoehr for additional information on this page.

Ivan Gogin, 2019
