Names |
P101-104 |
|
Builders |
RAMTA-IAI, Be'er Sheva, Israel: P101-104 |
|
Commissioned |
1993: P101, 102 1994: P103, 104 |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
in service (2019): P101-104 |
|
Displacement standard, t |
48 |
|
Displacement full, t |
54 |
|
Length, m |
21.6 |
|
Breadth, m |
5.50 |
|
Draught, m |
1.80 |
|
No of shafts |
3 |
|
Machinery |
3 General Motors Detroit Diesel 16V92TA diesels |
|
Power, h. p. |
2070 |
|
Max speed, kts |
40 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
1200(17) |
|
Armament |
2 x 1 - 20/70 Mk 10, 2 x 1 - 12.7/79 |
|
Sensors |
Raytheon radar |
|
Complement |
10 |
Project history: Israeli 'Super Dvora Mk II' design. Original order included six boats but only 4 were delivered.
Modernizations: early 2010s, all: - 2 x 1 - 20/70; + 1 x 2 - 23/87 ZSU-23-2
Naval service: No significant events.

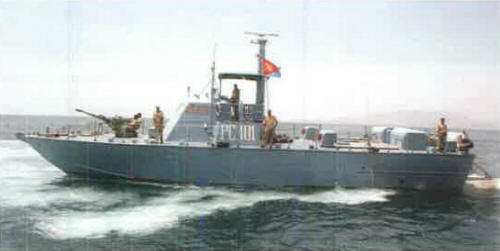

P101 2014
