| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Capitán de Fragata David Eyama Angue Osa | 106 | Hangchang, Linhai, China // Ukraine | 1.8.2008 | 31.5.2009 | in service (2020) |
|
Displacement standard, t |
1400 |
|
Displacement full, t |
4000 |
|
Length, m |
78.7 pp 91.5 oa |
|
Breadth, m |
14.7 |
|
Draught, m |
3.70 |
|
No of shafts |
2 |
|
Machinery |
2 Caterpillar 3516HD diesels |
|
Power, h. p. |
4580 |
|
Max speed, kts |
|
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | |
|
Armament |
1 x 1 - 76/59 AK-176, 2 x (2 Baryer ATGM + 1 - 30/100 + 1 - 7.6/90) Katran-M (8 Baryer), 2 x 2 - 25/82 2M-3M, 2 x 17 - 140 BM-14-17 RL, 1 helicopter |
| Military load | |
| Electronic equipment | Delta-M, nav. radars |
| Complement |
Project history: Ordered in 2007 and laid down as false merchant ro-ro vessel Salamandra. Outfitted and armed in Ukraine.
Modernizations: None.
Naval service: No significant events.

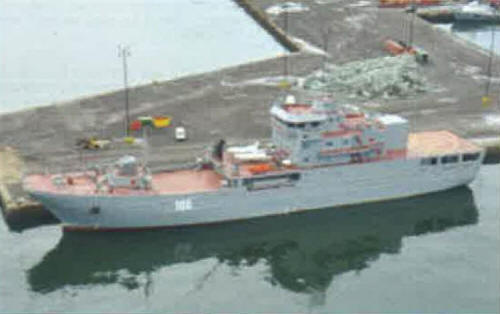

Capitán de Fragata David Eyama Angue Osa 2012
