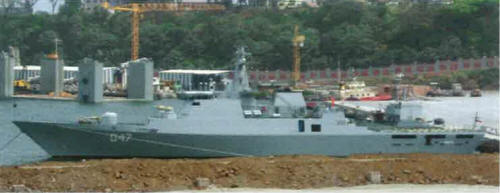

Bata 2015
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Bata | 047 | MTG Delfin, Varna, Bulgaria // ASABA GE, Malabo | 16.6.2010 | 27.1.2011 | 3.2.2012 | in service (2020) |
|
Displacement standard, t |
1360 |
|
Displacement full, t |
1780 |
|
Length, m |
73.5 pp 87.3 oa |
|
Breadth, m |
11.8 |
|
Draught, m |
4.05 |
|
No of shafts |
2 |
|
Machinery |
2 Caterpillar C280-16 diesels |
|
Power, h. p. |
13760 |
|
Max speed, kts |
25 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
3500(12) |
|
Armament |
1 x 1 - 76/59 AK-176, 2 x (2 Baryer ATGM + 1 - 30/100 + 1 - 7.6/90) Katran-M (8 Baryer), 2 x 6 - 30/54 AK-630M, helicopter deck |
|
Electronic equipment |
Delta-M, nav. radars, Selena e/o system |
|
Complement |
55 |
Project history: Ship was built at Varna as "search-and-rescue ship Kasatka" under SV-01 design and outfitted and armed in Equatorial Guinea. Armament was presumably removed from scrapped Ukrainian ships. Ship carries two RIBs in hangar under the helicopter deck, launched via stern ramp.
Modernizations: None.
Naval service: No significant events.
Bata 2012
© Ivan Gogin, 2020
