NAVY OF EL SALVADOR (EL SALVADOR)
General Manuel José Arce 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| General Manuel José Arce (ex-Madrona) | BL01 | Zenith Dredge, Duluth, USA | 6.7.1942 | 11.11.1942 | 30.5.1943 // 4.12.2002 | discarded 2012 |
|
Displacement standard, t |
700 |
|
Displacement full, t |
1038 |
|
Length, m |
51.8 pp 54.9 oa |
|
Breadth, m |
11.3 |
|
Draught, m |
4.00 |
|
No of shafts |
1 |
|
Machinery |
2 diesel-generators, 1 electric motor |
|
Power, h. p. |
1200 |
|
Max speed, kts |
13 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
14000(7) |
|
Armament |
2 x 1 - 12.7/90 |
|
Electronic equipment |
SPS-73 radar |
|
Complement |
53 |
Project history: Former USCG Balsam class navigation aids tender. Served as flagship for the navy and offshore patrol vessel.
Modernizations: None.
Naval service: No significant events.

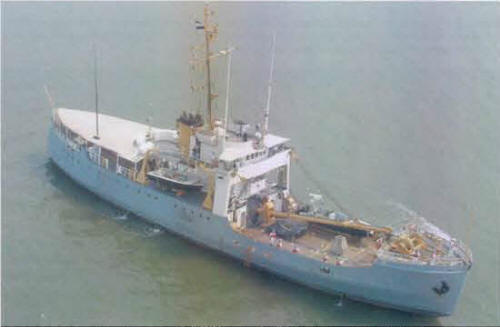

General Manuel José Arce 2003
© Ivan Gogin, 2019
