LP01 patrol launches (1988-1989)

Names	LP01-09, 2003- PC01-09
Builders	SeaArk Marine, Monticello, USA: LP01-09
Commissioned	1988: LP01-05 1989: LP06-09
Losses	none
Transfers	None
Discarding	1998: one unit in service (2019): 8 units

Displacement standard, t
9

Displacement full, t
11

Length, m
11.1 pp 12.2 oa

Breadth, m
3.86

Draught, m
0.69

No of shafts
2

Machinery

2 Caterpillar 3208TA diesels

Power, h. p.

630

Max speed, kts

26

Fuel, t

diesel oil 1.5

Endurance, nm(kts)

350(20)

Armament 2 x 1 - 12.7/90, 2 x 1 - 7.6/90

Electronic equipment Furuno 2400 radar

Complement
5

Project history: US Protector class patrol boat. Aluminium construction.

Modernizations: None.

Naval service: No significant events.

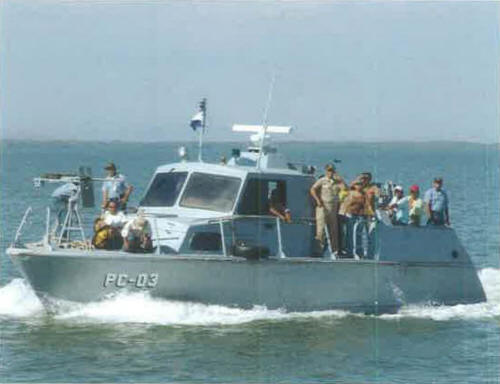

PC03 2006

Displacement standard, t	9
Displacement full, t	11
Length, m	11.1 pp 12.2 oa
Breadth, m	3.86
Draught, m	0.69
No of shafts	2
Machinery	2 Caterpillar 3208TA diesels
Power, h. p.	630
Max speed, kts	26
Fuel, t	diesel oil 1.5
Endurance, nm(kts)	350(20)
Armament	2 x 1 - 12.7/90, 2 x 1 - 7.6/90
Electronic equipment	Furuno 2400 radar
Complement	5
