NAVY OF EL SALVADOR (EL SALVADOR)
LD02 1990
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| LD02, 2003- BD02 | SeaArk, Monticello, USA | 1.1987 | in service (2019) | ||||
| LD03 | SeaArk, Monticello, USA | 1.1987 | lost late 1990s | ||||
| LD04, 2003- BD04 | USA | 1950s // 5.1996 | in service (2019) | ||||
| LD05, 2003- BD05 | USA | 1950s // 5.1996 | in service (2019) | ||||
| BD06 | USA | 1950s // 2010 | in service (2019) |
|
Displacement standard, t |
56 |
|
Displacement full, t |
121 |
|
Length, m |
22.4 |
|
Breadth, m |
6.43 |
|
Draught, m |
1.35 fwd, 1.47 aft |
|
No of shafts |
2 |
|
Machinery |
2 General Motors 6-71 diesels |
|
Power, h. p. |
590 |
|
Max speed, kts |
9 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
190(9) |
|
Armament |
2 x 1 - 12.7/90 |
|
Military load |
150 troops or 60 t of cargo |
|
Complement |
5 |
Project history: Former USN LCM(8) craft. First pair was transferred new by builder.
Modernizations: None.
Naval service: No significant events.

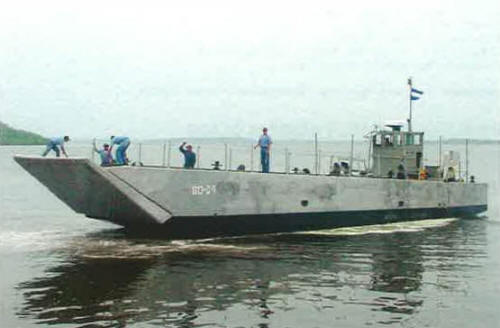

BD04 2003
