S1 1960
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| S1 (ex-Ñ-175 [S-175]) | 112 Zhdanov Yd, Gorkiy, USSR | 31.10.1953 | 16.3.1954 | 10.10.1954 // 6.1957 | to USSR 8.1966 (Ñ-42 [S-42]) | ||
| S2 (ex-Ñ-182 [S-182]) | 112 Zhdanov Yd, Gorkiy, USSR | 30.1.1954 | 29.5.1954 | 8.12.1954 // 6.1957 | to USSR 7.1968 (Ñ-406 [S-406]) | ||
| S3 (ex-Ñ-180 [S-180]) | 112 Zhdanov Yd, Gorkiy, USSR | 31.12.1953 | 15.5.1954 | 9.12.1954 // 4.1958 | stricken 1978? | ||
| S4 (ex-Ñ-193 [S-193]) | 112 Zhdanov Yd, Gorkiy, USSR | 31.3.1954 | 14.8.1954 | 28.4.1955 // 4.1958 | stricken 1982? | ||
| S5 (ex-Ñ-184 [S-184]) | 112 Zhdanov Yd, Gorkiy, USSR | 23.2.1954 | 19.6.1954 | 18.12.1954 // 4.1958 | to USSR 8.1967 (Ñ-15 [S-15]) | ||
| S6 (ex-Ñ-228 [S-228]) | 444 Marti Yd, Nikolayev, USSR | 20.9.1954 | 25.6.1955 | 16.9.1955 // 1.1962 | stricken 1982? | ||
| S7 (ex-Ñ-226 [S-226]) | 444 Marti Yd, Nikolayev, USSR | 4.6.1954 | 16.3.1955 | 30.7.1955 // 12.1965 | stricken 1985? | ||
| S8 (ex-Ñ-227 [S-227]) | 444 Marti Yd, Nikolayev, USSR | 5.8.1954 | 8.10.1954 | 31.8.1955 // 12.1965 | stricken 1988? | ||
| 415 (ex-Ñ-280 [S-280]) | 415 | 112 Zhdanov Yd, Gorkiy, USSR | 30.12.1954 | 2.6.1955 | 22.9.1955 // 2.1972 | stricken 1995? | |
| 418 (ex-Ñ-380 [S-380]) | 418 | 444 Nosenko Yd, Nikolayev, USSR | 19.6.1956 | 29.12.1956 | 30.6.1957 // 1971 | stricken 1995? |
|
Displacement standard, t |
|
|
Displacement normal, t |
1045 / 1342 |
|
Length, m |
76.0 |
|
Breadth, m |
6.30 |
|
Draught, m |
4.55 |
|
No of shafts |
2 |
|
Machinery |
2 37D diesels / 2 PG-101 electric motors |
|
Power, h. p. |
4000 / 2700 |
|
Max speed, kts |
18.3 / 13.1 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
8580(10) / 353(2) |
|
Armament |
6 - 533 TT (4 bow, 2 stern, 12 or 22 mines) |
|
Electronic equipment |
Flag radar, Tamir-5L, Feniks sonars, Nakat ECM suite |
|
Complement |
55 |
|
Diving depth operational, m |
170 |
Project history: Former Soviet Project 613 medium submarines.
Modernizations: None.
Naval service: In 1981 six were in service with pennant nos 415, 418, 421, 432, 455 and 477. In 1988 three with pennants 810, 816 and 819. In 1990 two (810 and 816).

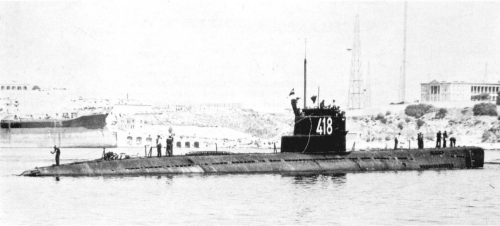

No 418 1980
