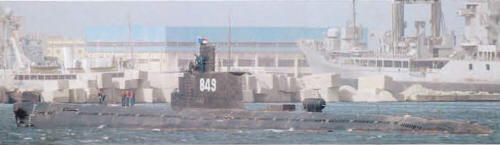

849 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 849 | Jiangnan SY, Shanghai, China | 28.3.1983 | in service (2019) | ||||
| 852 | Jiangnan SY, Shanghai, China | 28.3.1983 | in service (2019) | ||||
| 855 | Jiangnan SY, Shanghai, China | 3.1.1984 | in service (2019) | ||||
| 858 | Jiangnan SY, Shanghai, China | 3.1.1984 | in service (2019) |
|
Displacement standard, t |
|
|
Displacement normal, t |
1470 / 1830 |
|
Length, m |
76.6 |
|
Breadth, m |
6.70 |
|
Draught, m |
4.95 |
|
No of shafts |
2 |
|
Machinery |
2 1Z38 diesels / 2 electric motors |
|
Power, h. p. |
4800 / 2700 |
|
Max speed, kts |
15 / 13 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
7400(9.2) / 350(2) |
|
Armament |
8 - 533 TT (6 bow, 2 stern, 14 or 28 mines) |
|
Electronic equipment |
Flag (analog) radar, H/SQZ-D sonar |
|
Complement |
58 |
|
Diving depth operational, m |
240 |
Project history: Chinese Type 033 mod. submarines.
Modernizations: 12.1993-1/1997, all: - 8 - 533 TT (6 bow, 2 stern, 14 or 28 mines), H/SQZ-D sonar; + 8 - 533 TT (6 bow, 2 stern, 14 (inc. Sub-Harpoon SSM (4 UGM-84A)) or 28 mines), CSU-83, Loral HF active sonars, AR-700 ECM suite
Naval service: No significant events.
No 849 2006
