| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| سفاجا [Safaga] | 610, 1990s- RSV1 | Swiftships, Morgan City, USA | 1.10.1994 | in service (2019) | |||
| أبو الغصن [Abu El Ghoson] | 613, 1990s- RSV2 | Swiftships, Morgan City, USA | 1.10.1994 | in service (2019) |
|
Displacement standard, t |
155 |
|
Displacement full, t |
165 |
|
Length, m |
26.8 |
|
Breadth, m |
7.92 |
|
Draught, m |
2.27 |
|
No of shafts |
2 |
|
Machinery |
2 MTU 12V183 TC82 diesels |
|
Power, h. p. |
1035 |
|
Max speed, kts |
12 |
|
Fuel, t |
diesel oil 20 |
|
Endurance, nm(kts) |
1500(10) |
|
Armament |
1 x 1 - 12.7/90 |
|
Electronic equipment |
Furuno FR-2020 radar, EG&G sidescan sonar, also can tow 606A-602 or 606A-604 sonar array |
|
Complement |
17 |
Project history: GRP hull, ordered in November 1990. Sonar tugs.
Modernizations: None.
Naval service: No significant events.

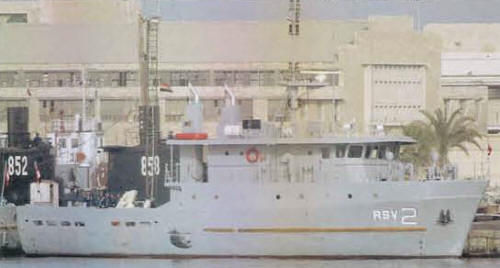

Abu El Ghoson 2006
