El Fayoum 1962
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| الفيوم [El Fayoum] (ex-T...) | 708 | 341 Yd, Rybinsk, USSR | 1948-53 // 1962 | discarded 1991 | |||
| محافظة [El Monufia] (ex-T...) | 619 | 341 Yd, Rybinsk, USSR | 1948-53 // 1962 | discarded 1991 |
|
Displacement standard, t |
148 |
|
Displacement full, t |
161 |
|
Length, m |
36.0 wl 38.0 oa |
|
Breadth, m |
5.70 |
|
Draught, m |
1.56 |
|
No of shafts |
3 |
|
Machinery |
3 3D-12 diesels |
|
Power, h. p. |
690 |
|
Max speed, kts |
12 |
|
Fuel, t |
diesel oil 10 |
| Endurance, nm(kts) | 500(10) |
|
Armament |
2 x 1 - 45/68 21KM, 2 x 1 - 12.7/79, 2 DCR (10), MT-3, OPT mechanical, PEMT-4 magnetic, BAT-2 acoustic minesweeping gear |
|
Electronic equipment |
Tamir-10 sonar |
|
Complement |
35 - 37 |
Project history: Former Soviet project 255K inshore minesweepers.
Modernizations: None.
Naval service: No significant events.

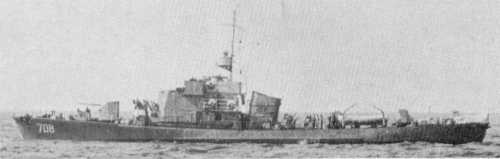

El Fayoum 1978
