Sharkiya 1960
Minya 1970
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| project 254 | |||||||
| (ex-MT-68, ex-T-68) | 532 Yd, Kerch', USSR | 16.2.1952 | 31.7.1952 | 31.12.1952 // 1.1968 | to USSR 12.1968 (MT-68) | ||
| project 254K | |||||||
| محافظة [Sharkiya] (ex-T-497) | 304, 1978- 650, 1987- 504 | 363 Yd, Pontonnyy, USSR | 25.12.1953 | 4.8.1954 | 30.9.1954 // 6.1956 | stricken 2002 | |
| دقهلية [Dakahliya] (ex-T-498) | 305, 1978- 672, 1987- 507 | 363 Yd, Pontonnyy, USSR | 19.1.1954 | 14.8.1954 | 31.10.1954 // 6.1956 | in service (2019) | |
| سيناء [Sinai] (ex-T-499) | 302, 1978- 679, 1987- 513 | 363 Yd, Pontonnyy, USSR | 4.3.1954 | 9.9.1954 | 18.11.1954 // 6.1956 | in service (2019) | |
| أسيوط [Assiut] (ex-T-500) | 303, 1978- 657, 1987- 516 | 363 Yd, Pontonnyy, USSR | 29.3.1954 | 22.9.1954 | 30.11.1954 // 6.1956 | in service (2019) | |
| بحرية [Bahariya] (ex-MT-809, ex-T-809) | 301, 1978- 659, 1987- 522, 1990- 510 | 532 Yd, Kerch', USSR | 21.4.1954 | 19.8.1954 | 27.10.1954 // 12.1967 | stricken 2004 | |
| غربية [Gharbiya] (ex-MT-810, ex-T-810) | 306, 1978- 656, 1987- 533, 1990- 501 | 532 Yd, Kerch', USSR | 17.5.1954 | 6.9.1954 | 31.10.1954 // 8.1967 | stricken 2002 | |
| project 254M | |||||||
| منيا [Minya] (ex-MT-509, ex-T-509) | 302 | 363 Yd, Pontonnyy, USSR | 8.9.1954 | 2.2.1955 | 6.8.1955 // 2.1970 | sunk 6.2.1970 | |
|
Displacement standard, t |
pr. 254: 500 pr. 254K: 510 pr. 254M: 540 |
|
Displacement normal, t |
pr. 254: 569 pr. 254K: 577 pr. 254M: 600 |
|
Length, m |
pr. 254, 254K: 58.0 pr. 254M: 59.1 |
|
Breadth, m |
pr. 254: 8.52 pr. 254K, 254M: 8.50 |
|
Draught, m |
pr. 254: 2.25 pr. 254K: 2.28 pr. 254M: 2.33 |
|
No of shafts |
2 |
|
Machinery |
pr. 254: 2 9D diesels pr. 254K, 254M: 2 9D or 9DM diesels |
|
Power, h. p. |
2200 |
|
Max speed, kts |
pr. 254, 254K: 14 pr. 254M: 14.5 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
pr. 254, 254K: 3200(10) pr. 254M: 3500(10) |
|
Armament |
pr. 254: 2 x 2 - 37/70 V-11/V-11M, 4 x 2 - 12.7/79, 2 DCT, 2 DCR (22), 16 - 8 mines (8 AMD-1000 or 10 KB-3 or 16 obr. 1908/39), MT-1 or MT-1P mechanical, TEM-52 magnetic, 2 BAT-2 acoustic minesweeping gears pr. 254K: 2 x 2 - 37/70 V-11/V-11M, 4 x 2 - 12.7/79, 2 DCT, 2 DCR (22), 16 - 8 mines (8 AMD-1000 or 10 KB-3 or 16 obr. 1908/39), MT-2 mechanical, TEM-52 magnetic, 2 BAT-2 acoustic minesweeping gears pr. 254M: 2 x 2 - 37/70 V-11/V-11M, 2 x 2 - 25/112 2M-3M, 2 x 2 - 14.5/89, 2 x 2 - 12.7/79, 2 DCT (10), 16 - 8 mines (8 AMD-1000 or 10 KB-3 or 16 obr. 1908/39), MKT-1 mechanical, TEM-52M magnetic, BGAT acoustic minesweeping gear |
|
Electronic equipment |
pr. 254: Rif or Giuys-1M, Rym-K or Neptun radars, Tamir-10 sonar pr. 254K: Lin', Rym-K radars, Tamir-10 sonar pr. 254M: Lin', Rym-K radars, Tamir-11 sonar |
|
Complement |
pr. 254: 65 pr. 254K: 68 pr. 254M: 77 |
Project history: Former Soviet project 254, 254K and 254M seagoing minesweepers.
Modernizations: None.
Naval service: Minya was sunk in the Gulf of Suez by Israeli aircraft 6.2.1970.

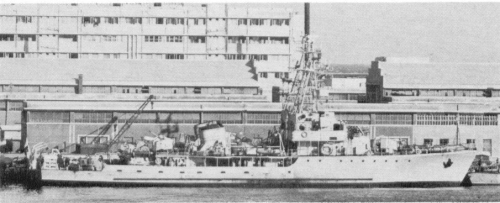

1978

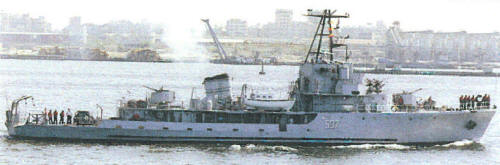

Dakahliya 2000
