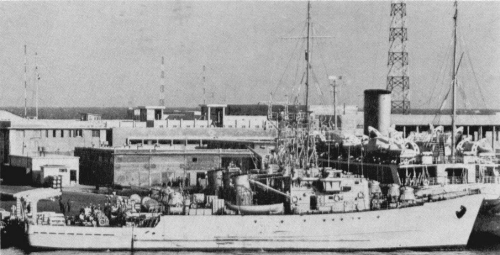

Aswan 1975
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| أسوان [Aswan] | 695, 1978- 536, 2010s- 533 | Sredne-Nevskiy, Pontonnyy, USSR | 1970 | in service (2019) | |||
| جيزة [Ghiza] | 690, 1978- 537, 1987- 533, 2010s- 530 | Sredne-Nevskiy, Pontonnyy, USSR | 1970 | in service (2019) | |||
| قنا [Qena] | 696, 1978- 538, 2010s- 536 | Sredne-Nevskiy, Pontonnyy, USSR | 1971 | in service (2019) | |||
| سوهاج [Sohag] | 699, 1978- 539 | Sredne-Nevskiy, Pontonnyy, USSR | 1971 | in service (2019) |
|
Displacement standard, t |
519 |
|
Displacement full, t |
560 |
|
Length, m |
52.1 |
|
Breadth, m |
9.40 |
|
Draught, m |
2.65 |
|
No of shafts |
2 |
|
Machinery |
2 M-503B diesels |
|
Power, h. p. |
5000 |
|
Max speed, kts |
16 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
1500(12) |
|
Armament |
2 x 4 Strela-3 SAM (16 9M36), 2 x 2 - 30/71 AK-230M, 2 DCR (36), 10 mines, BKT or MT-1D or PST-1 or PPT-1 mechanical, TEM-3 magnetic, PAUT, AT-3 acoustic minesweeping gears, 2 200m HsZ-1M or ShZ-2 mine clearing line charges |
|
Electronic equipment |
Rym-K, MR-104 Rys', Don radars, MG-69 Lan' sonar |
|
Complement |
56 |
Project history: Soviet-built project 266 seagoing minesweepers, specially built for Egyptian Navy.
Modernizations: None.
Naval service: No significant events.

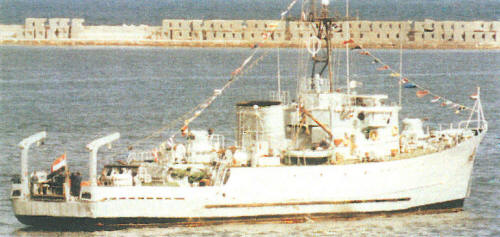

Aswan 1978
Aswan 1998
