Al Siddiq 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| الصديق [Al Siddiq] (ex-Cardinal) | 521 | Intermarine USA, Savannah, USA | 13.4.1994 | 9.3.1996 | 18.10.1997 // 7.1.2007 | in service (2019) | |
| الفاروق [Al Farouk] (ex-Raven) | 524 | Intermarine USA, Savannah, USA | 1.4.1995 | 28.9.1996 | 5.9.1998 // 7.1.2007 | in service (2019) |
|
Displacement standard, t |
803 |
|
Displacement full, t |
918 |
|
Length, m |
53.1 pp 57.3 oa |
|
Breadth, m |
11.0 |
|
Draught, m |
2.84 normal 3.35 max |
|
No of shafts |
2 Voith-Schneider |
|
Machinery |
2 Isotta-Fraschini ID36SS 6V-AM diesels |
|
Power, h. p. |
1160 |
|
Max speed, kts |
12 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
2500(12) |
|
Armament |
2 x 1 - 12.7/90, SLQ-48(V)2 MNS UUV, SLQ-33 mechanical minesweeping gear |
|
Electronic equipment |
SPS-64(V)9 radar, SQQ-32(v)3 sonar, SSQ-94 CCS |
|
Complement |
51 |
Project history: Former USN Osprey class minehunters.
Modernizations: None.
Naval service: No significant events.

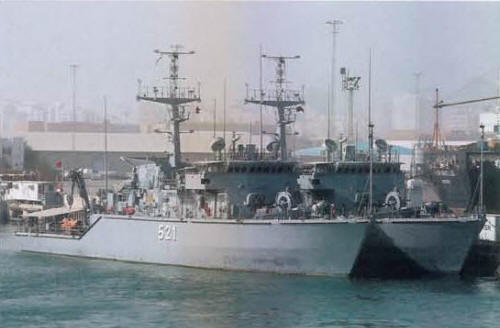

Al Siddiq 2007
