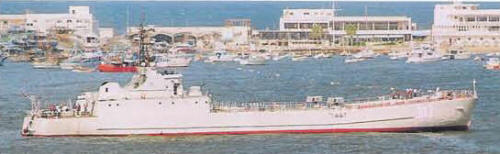

No 301 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 910, 1982- 301 | Stocznia Północna, Gdańsk, Poland | 1974 | in service (2019) | ||||
| 912, 1982- 303 | Stocznia Północna, Gdańsk, Poland | 1974 | in service (2019) | ||||
| 915, 1982- 305 | Stocznia Północna, Gdańsk, Poland | 1974 | in service (2019) |
|
Displacement standard, t |
772 |
|
Displacement normal, t |
820 |
|
Length, m |
73.0 |
|
Breadth, m |
8.62 |
|
Draught, m |
1.98 |
|
No of shafts |
2 |
|
Machinery |
2 40D diesels |
|
Power, h. p. |
4400 |
|
Max speed, kts |
18.5 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
1800(16) |
|
Armament |
1 x 2 - 30/71 AK-230, 2 x 18 - 140 WM-18 RL |
|
Military load |
4 heavy or 5 medium tanks or 9 trucks |
|
Electronic equipment |
Donets, MR-104 Rys' radars |
|
Complement |
42 |
Project history: Soviet Project 770MA.
Modernizations: 2000s, all: - Donets radar; + Decca radar
Naval service: No significant events.
No 303 2000
