El Najim Al Zafir 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| النجم الظافر [El Najim Al Zafir] | 951 | Jiangnan, Shanghai, China | 27.10.1984 | in service (2019) | |||
| الناصر [El Naser] | 956 | Jiangnan, Shanghai, China | 16.4.1985 | in service (2019) |
|
Displacement standard, t |
1425 |
|
Displacement full, t |
1700 |
|
Length, m |
103.2 |
|
Breadth, m |
10.2 |
|
Draught, m |
3.05 hull |
|
No of shafts |
2 |
|
Machinery |
2 SEMT-Pielstick 12PA6 280BTC diesels |
|
Power, h. p. |
16000 |
|
Max speed, kts |
25.5 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
4000(15) |
|
Armament |
2 x 2 Hai Ying-2 SSM (4 C-201), 2 x 2 - 57/70 type 76, 6 x 2 - 37/63 type 74, 4 x 5 type 81 ASWRL, 4 DCT, 2 DCR, 60 mines |
|
Sensors |
type 756, type 354, type 352C radars, GDG-775 e/o system, SJD-3 (E5) sonar |
|
Complement |
195 |
Project history: Chinese Type 053H1 frigates, ordered in 1982with 57mm guns instead of 100mm.
Modernizations: late 1980s, both: + Decca RM1290A radar, Newton-Beta ECM suite
1994, both: + Triton ECM suite
late 2010s, both: - 2 x 5 type 81 ASWRL, 4 DCT, 2 DCR, mines; + JRC radar
Naval service: No significant events.

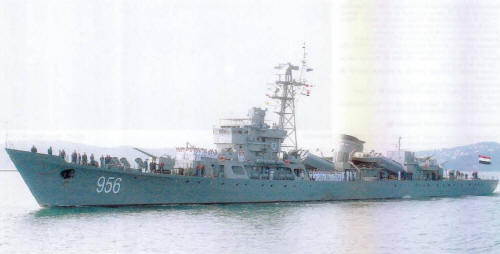

El Nasser 2006
