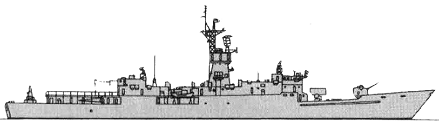

Damiyat 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| دمياط [Damyat] (ex-Jesse L. Brown) | 961 | Avondale, Westwego, USA | 8.4.1971 | 18.3.1972 | 17.2.1973 // 28.7.1994 | in service (2019) | |
| رشيد [Rasheed] (ex-Moinester) | 966 | Avondale, Westwego, USA | 25.8.1972 | 12.5.1973 | 2.11.1974 // 28.7.1994 | in service (2019) |
|
Displacement standard, t |
3075 |
|
Displacement full, t |
4260 |
|
Length, m |
126.5 wl 133.6 oa |
|
Breadth, m |
14.3 |
|
Draught, m |
7.55 |
|
No of shafts |
1 |
|
Machinery |
1 set Westinghouse geared steam turbine, 2 Combustion Engineering boilers |
|
Power, h. p. |
35000 |
|
Max speed, kts |
27 |
|
Fuel, t |
oil |
| Endurance, nm(kts) | 4000(20) |
|
Armament |
1 x 8 Harpoon SSM / ASROC Mk 116 ASuR (4 RGM-84A / 12 RUR-5), 1 x 1 - 127/54 Mk 42, 1 x 6 - 20/76 Mk 15 Phalanx Block 1B, 4 x 1 - 12.7/90, 4 - 324 Mk 32 TT (22 Mk 46 Mod.5), 1 helicopter (SH-2G(E) Super SeaSprite) |
|
Electronic equipment |
961: SPS-64(v)9, SPS-67, SPS-40D, SPG-53F, Mk 90 radars, SQS-26CX, SQR-18A(v)1 sonars, SLQ-32(v)2 ECM suite, 2x Mk 36 SRBOC decoy RL, SLQ-25 Nixie torpedo decoy 966: SPS-64(v)9, SPS-67, SPS-40D, SPG-53F, Mk 90 radars, SQS-26CX, SQR-18A(v)1 sonars, SLQ-32(v)1 ECM suite, 2x Mk 36 SRBOC decoy RL, T-Mk 6 Fanfare torpedo decoy |
|
Complement |
285 |
Project history: USN Knox class frigates, transferred on lease and purchased outright in 1998. Ships were transferred without ASROC missiles. Sea Sprite helicopters were transferred in 1998.
Modernizations: None.
Naval service: No significant events.

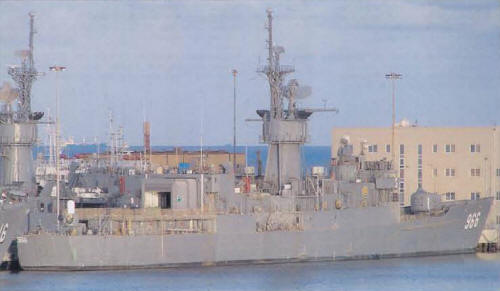

Rasheed 2007
